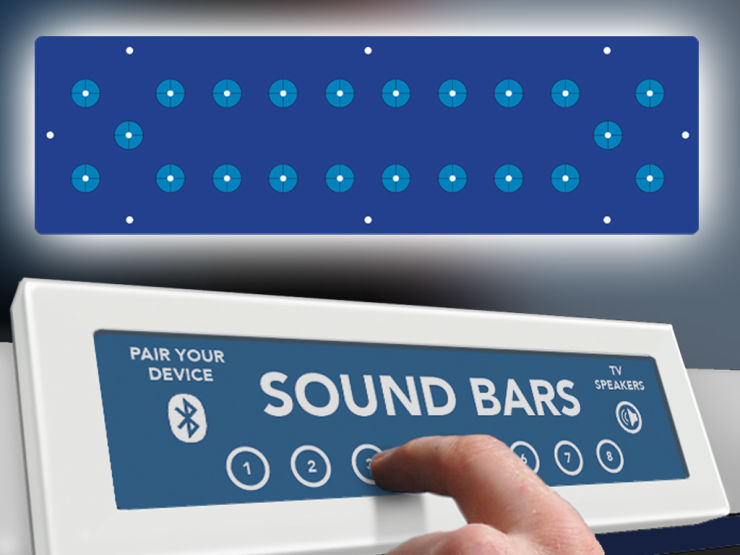

TS22 22-Position TouchSelect Panel

Model TS22

  • Up to 22 positions
  • Works with most graphic overlay materials*
  • Bright blue LEDs
  • Buttons can be programmed
  • (HxWxD, inches): 3.5 x 11.75 x 1

* Graphic overlay and custom enclosure not provided by Ascentic Retail Engineering.

Usage
  • Use only the locations you need on each panel
  • Use any non-conductive material for graphic overlay
  • Bright blue LEDs shine through many overlay materials
  • The connected player or switching device interprets each position connected
  • Custom button layout available on request

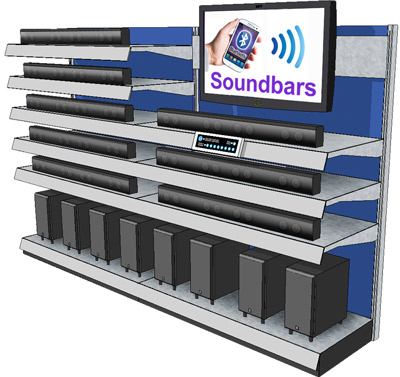

Example display for soundbars with a TS22 TouchSelect panel.

ts22 example display 1

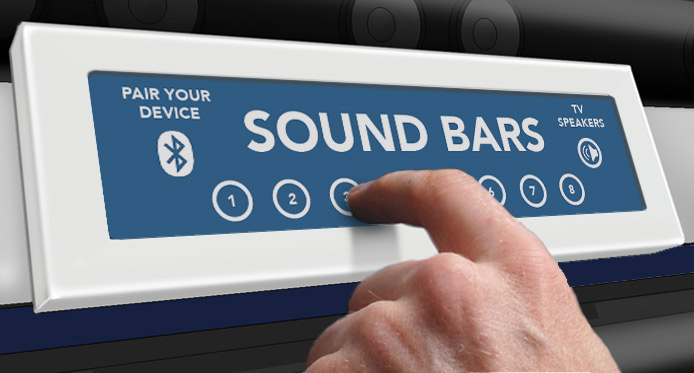

Example shelf mounted application shown in a custom enclosure. It uses ten of the 22 available button positions for selecting soundbars and connecting a  Bluetooth customer device.

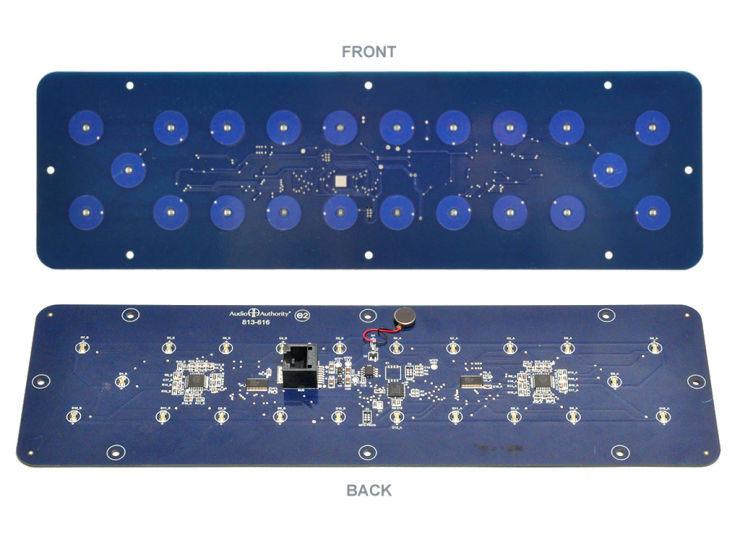

The TS22 is a thin circuit board that mounts behind an overlay, providing up to 22 button positions for use as product selection, play/pause, volume controls, or to trigger specific audio or video tracks.

ts22 example system 2







Touch Sensitive Control

Our TouchSelect™ series panels present an elegant interface that adapts well to any display or retail interior.  Each thin circuit board mounts behind a custom overlay you can design to enhance your fixture. Standard TouchSelect button arrays include four, nine, and 22 positions, with custom layouts available for quote. Multiple TouchSelect panels may be used in the same system, and you can use the system to play dedicated video tracks on a BrightSign® media player, or to activate audio demonstrations in coordination with our Model 1703 audio player.

Literature

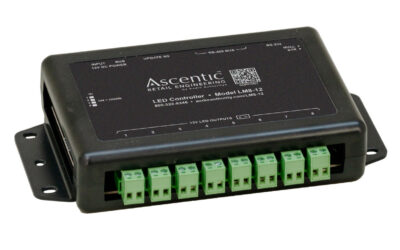

Model LM8-12 LED Controller

Model LM8-12 LED Controller

Model LM8-12 Control up to eight LED lights 12V LED lights or arrays Outputs controlled by RS-232 or RS-485 Small footprint for easy placement Up to 5A per output, 12A total Compatible with MediaHubs Synchronize Lighting with a DemoThe LM8 Series LED Controllers add...

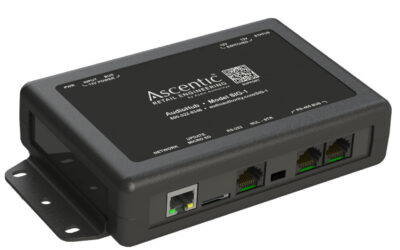

Model SIG-1 Communication Bridge
