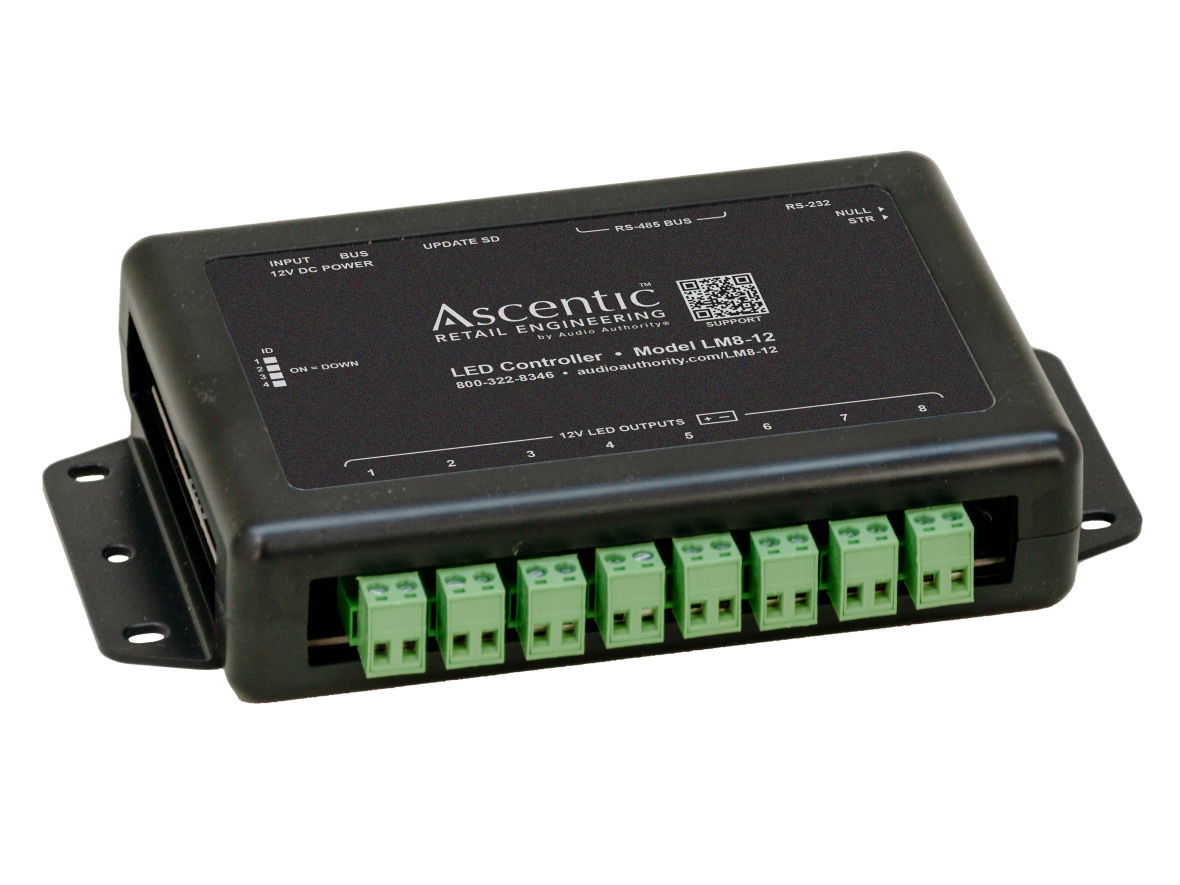

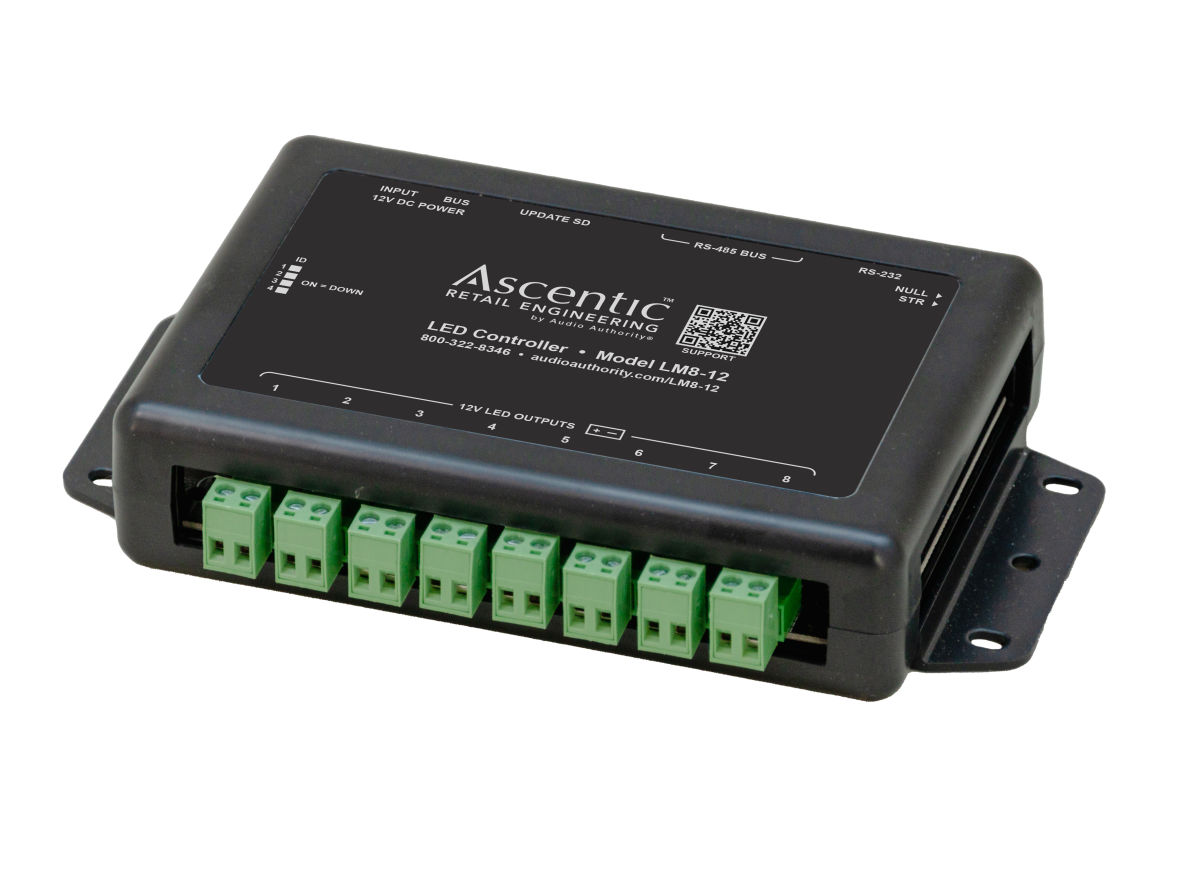

LM8-12 (angle)

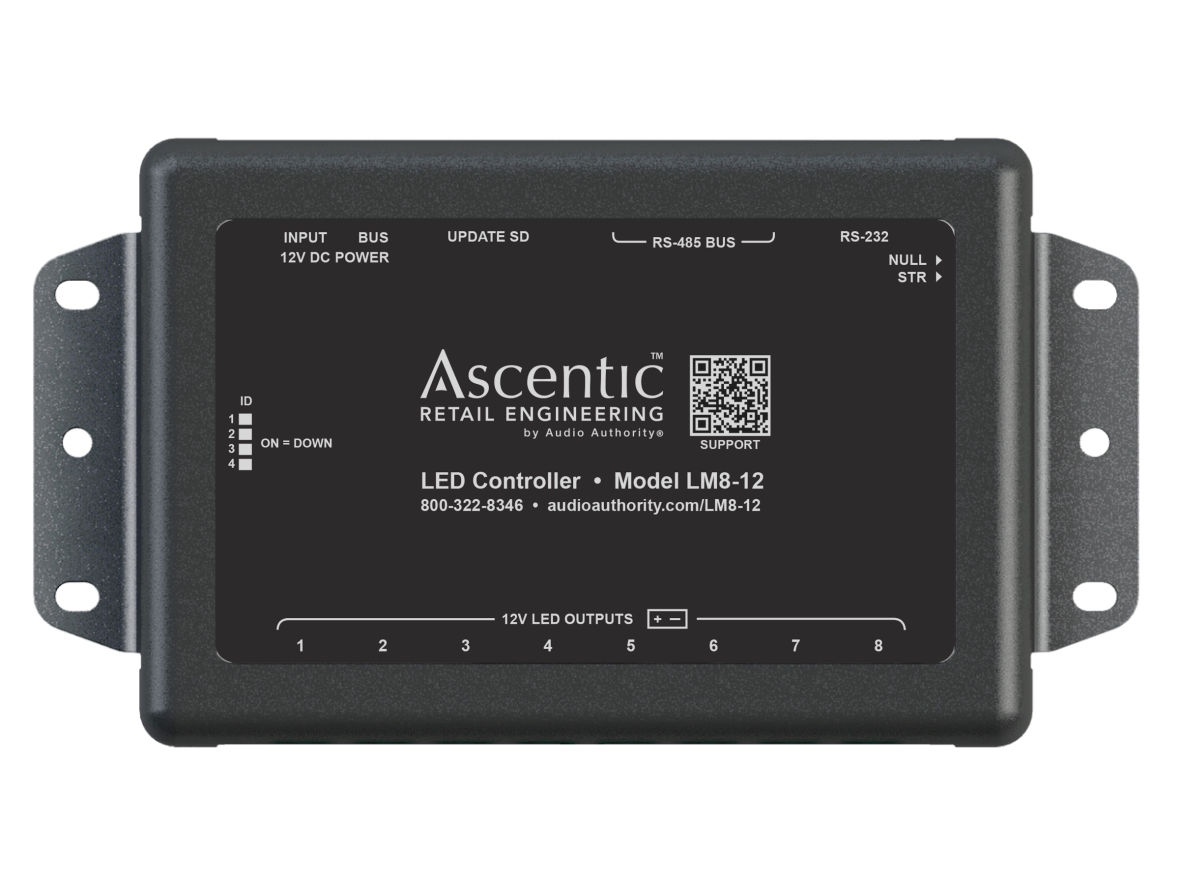

LM8-12 (top)

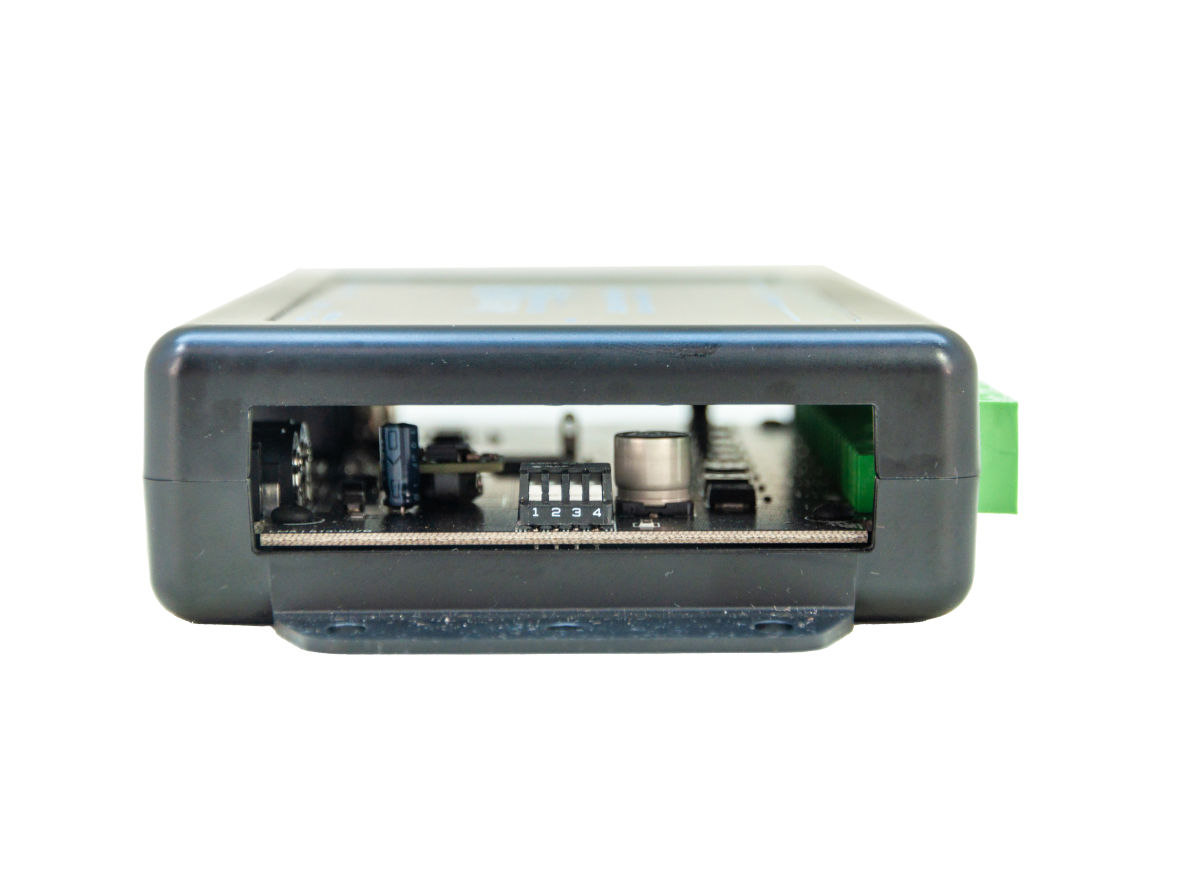

LM8-12 (side 1)

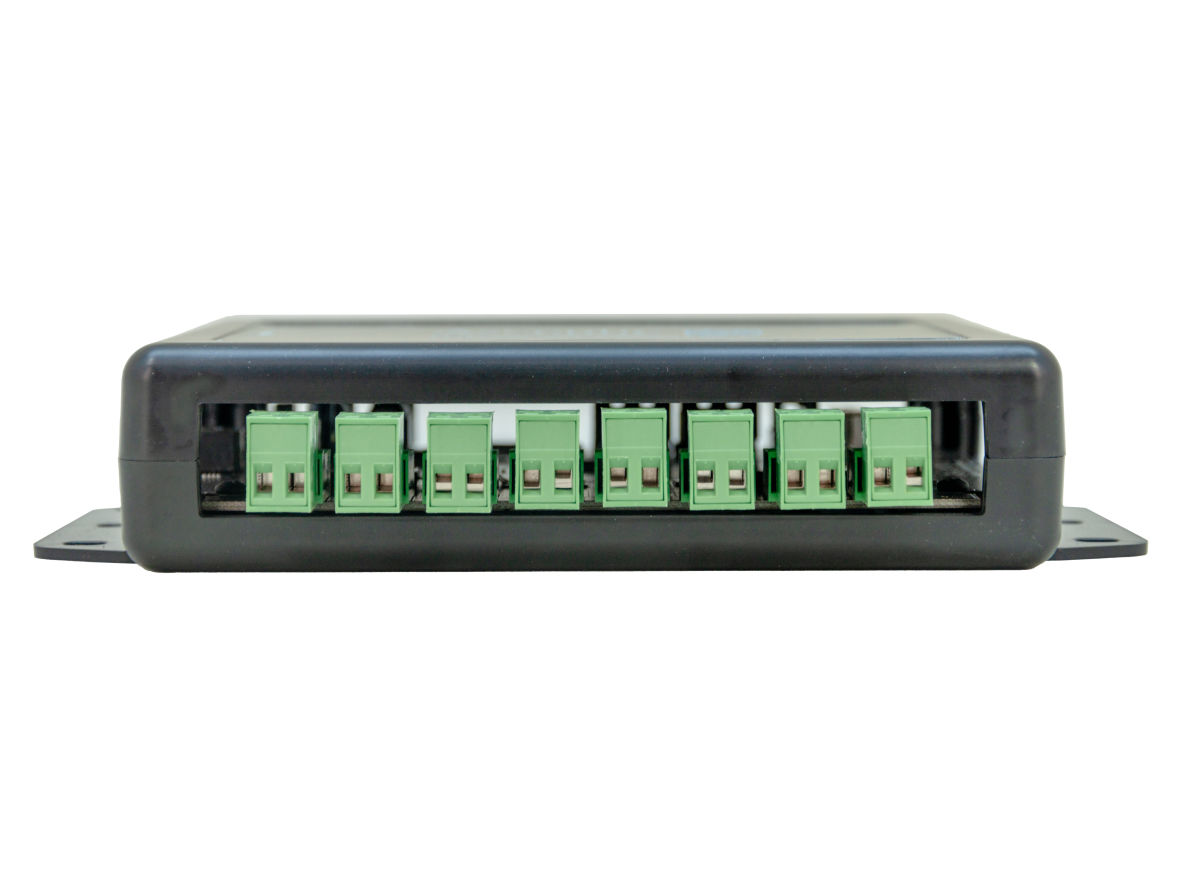

LM8-12 (side 2)

Model LM8-12 LED Controller

Model LM8-12

  • Control up to eight LED lights
  • 12V LED lights or arrays
  • Outputs controlled by RS-232 or RS-485
  • Small footprint for easy placement
  • Up to 5A per output, 12A total
  • Compatible with MediaHubs
Usage

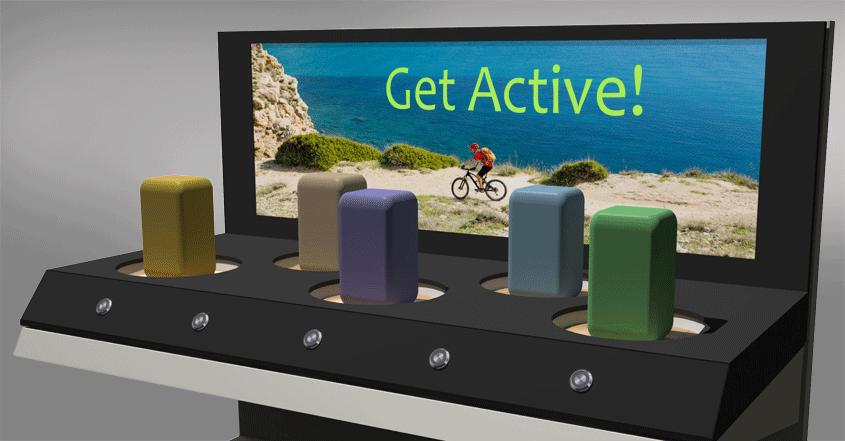

LM8-12 example usage

Synchronize Lighting with a Demo

The LM8 Series LED Controllers add synchronized lighting into a demo system. Available in 12V and 24V versions.

Switching
One or more LM8-12 modules can be controlled via Audio Authority TouchSelect panels, push-buttons, a custom touchscreen application, or BrightAuthor software. Light outputs switch when a product is selected. MediaHubs and Brightsign media players can also control the LM8-12 via RS-232 or RS-485 commands.

Lighting
Connect 12V light bars or LED strips to the eight LM8 controller outputs. Lights coordinate with product selection to add visual emphasis to comparisons.
