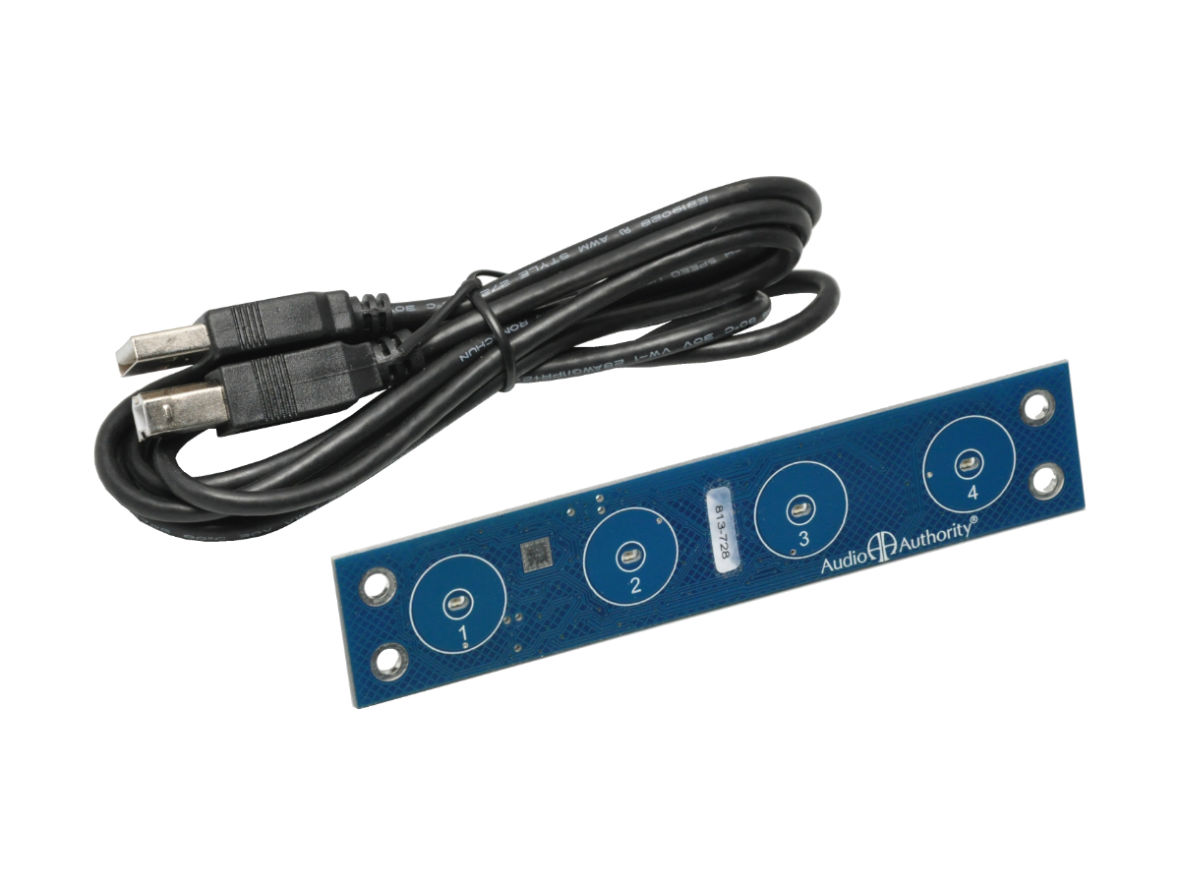

ts04-usb and cable

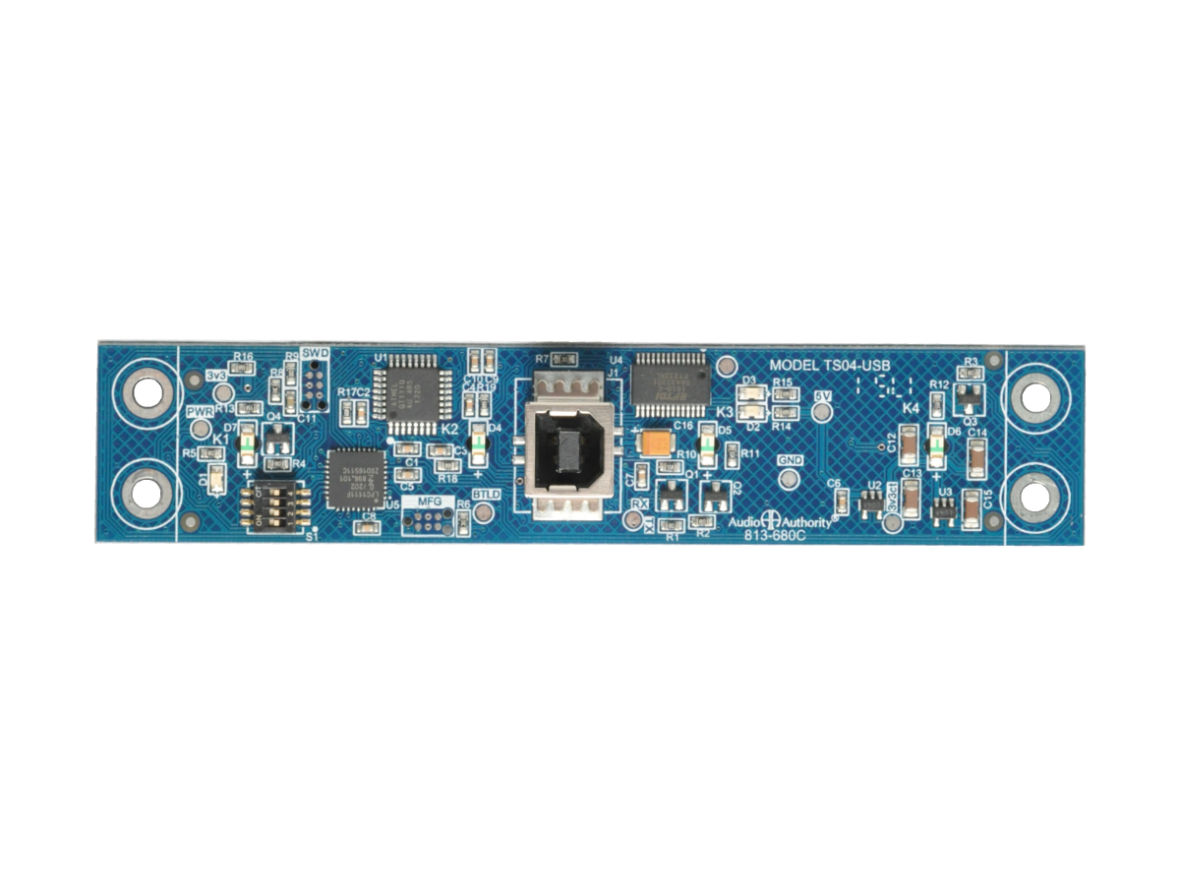

ts04-usb (rear)

TS04-USB Four-Position TouchSelect Panel

Model TS04-USB

  • Four positions
  • USB connection
  • Bright blue LEDs
  • Programmable in BrightAuthor
  • Custom touch array available on request
  • Dimensions (HxWxD, inches): 1 x 5 x 1
Usage
  • Four positions – use only the ones you need
  • USB connection for use with BrightSign players
  • Use any non-conductive material for graphic overlay
  • Bright blue LEDs shine through many overlay materials
  • Touch positions can be programmed in BrightAuthor
  • Custom touch array available on request
  • Circuit board dimensions (HxWxD, inches): 1 x 5 x 1

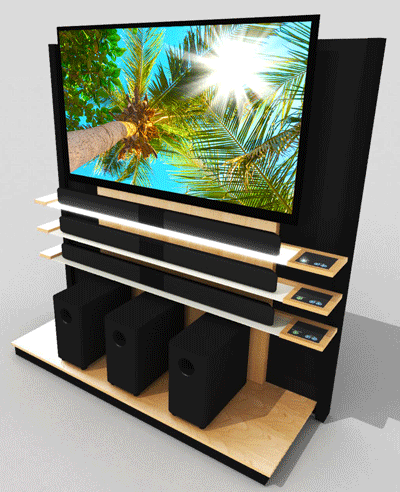

Example display for soundbars with TS04 TouchSelect panels. Each soundbar has touch positions for play and volume controls. For information about lighting synchronization, see Model 1800 product details.

example display with ts04

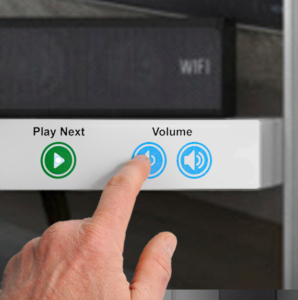

Example shelf edge application using three positions for play, volume up and volume down.

Touch Sensitive Control

Our TouchSelect™ series panels present an elegant interface that adapts well to any display or retail interior.  Each thin panel mounts behind a custom overlay designed for your fixture. Standard arrays include four, nine, and 22 positions, with custom layouts available for quote. Multiple TouchSelect panels may be used in the same system, and you can use the system to play dedicated video tracks on a BrightSign® media player, or to activate audio demonstrations in coordination with our Model 1703 audio player.
