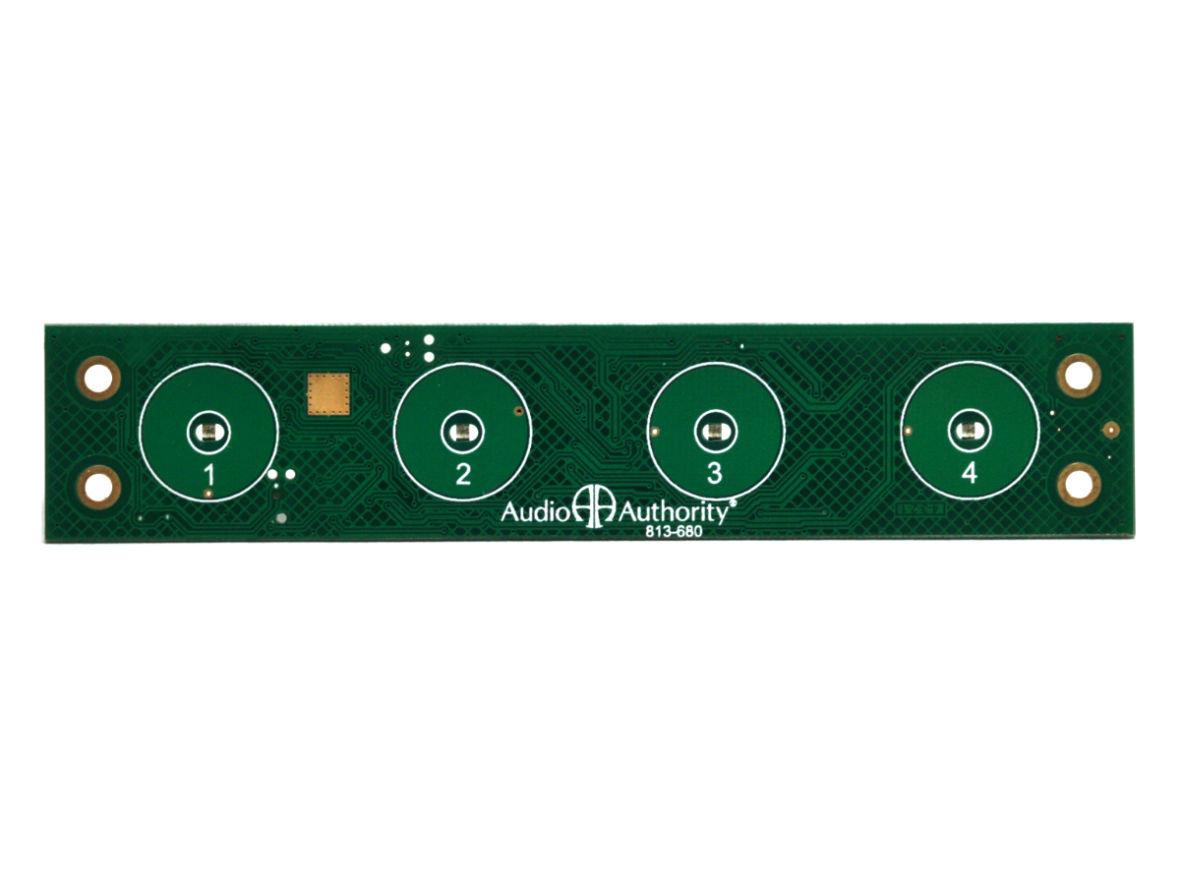

ts04 (front)

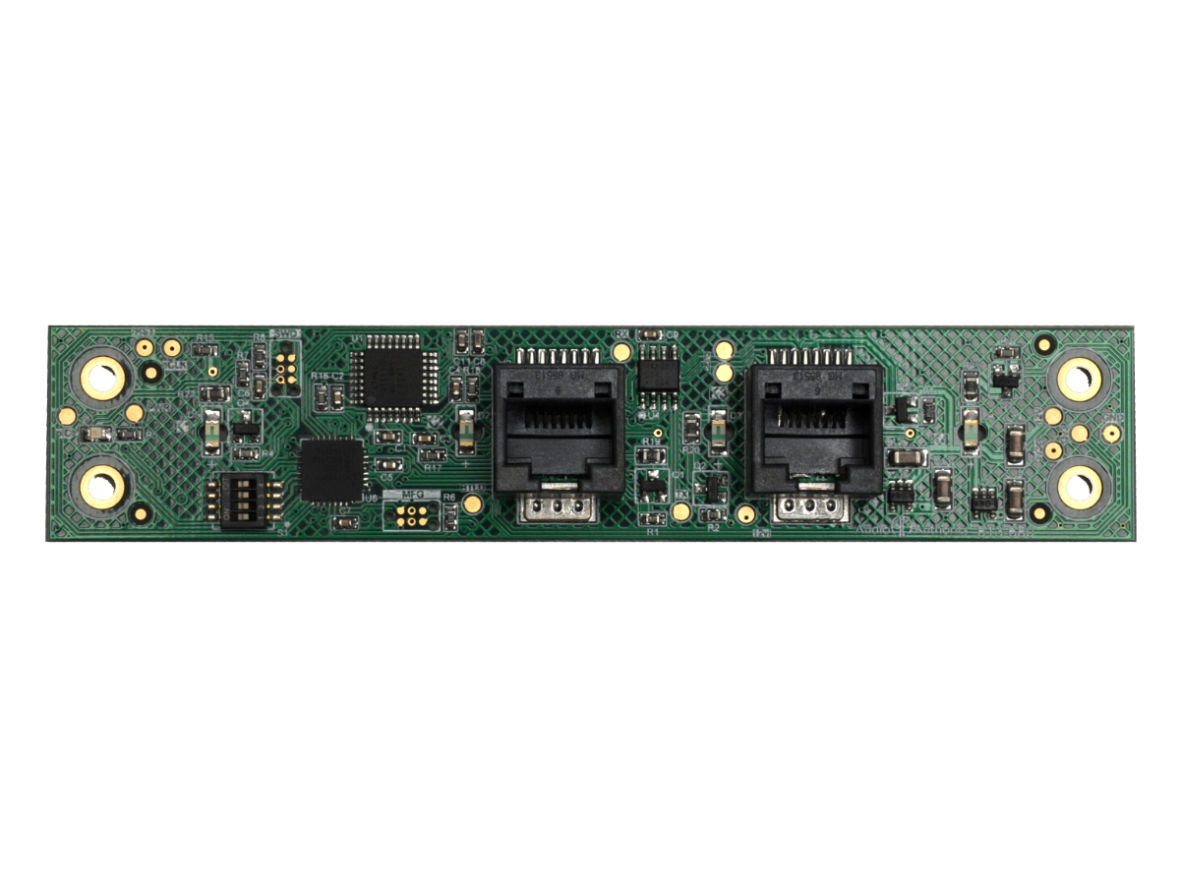

ts04 (back)

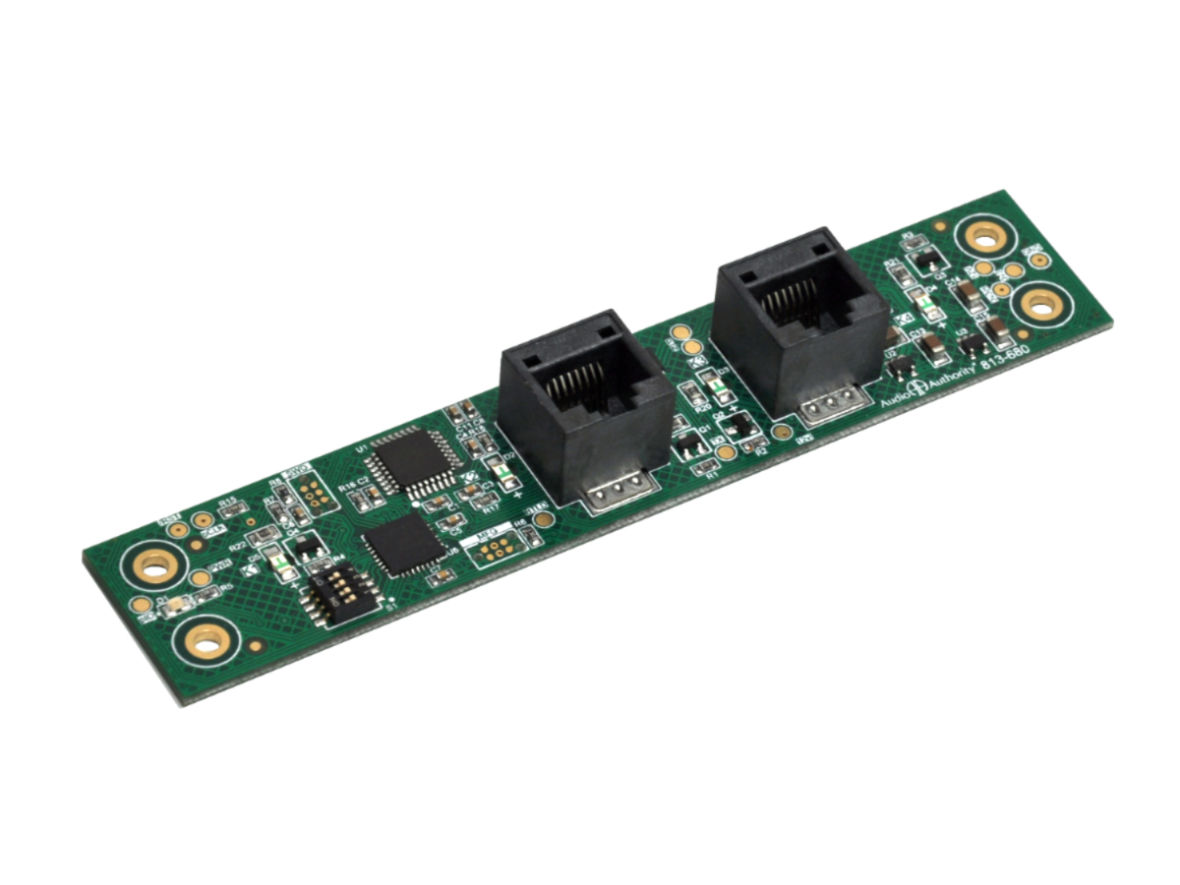

ts04 connections

TS04 Four-Position TouchSelect Panel

Model TS04

  • Four positions
  • Daisy chain via RS-485
  • Ideal under any graphic overlay
  • Blue LEDs
  • Dimensions: 1 x 5 x 1
Usage

Example display for soundbars with TS04 TouchSelect panels. Each soundbar has touch positions for play and volume controls. For information about lighting synchronization, see Model 1800 product details.

example display with ts04



Example shelf edge application using three positions for play, volume up and volume down.

example ts04 display (2)

Touch Sensitive Control

Our TouchSelect™ series panels present an elegant interface that adapts well to any display or retail interior.  Each thin panel mounts behind a custom overlay designed for your fixture. Standard arrays include four, nine, and 22 positions, with custom layouts available for quote. Multiple TouchSelect panels may be used in the same system, and you can use the system to play dedicated video tracks on a BrightSign® media player, or to activate audio demonstrations in coordination with our Model 1703 audio player.
