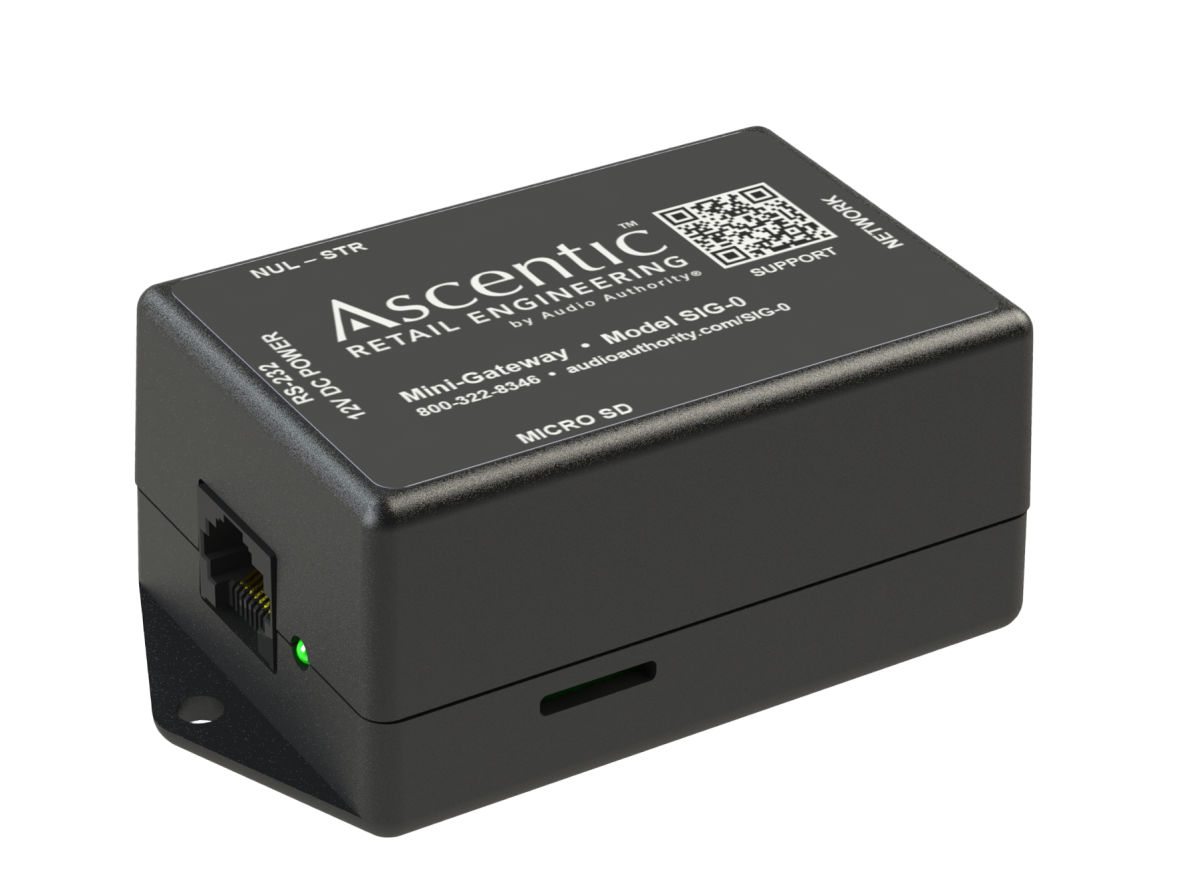

model SIG-0

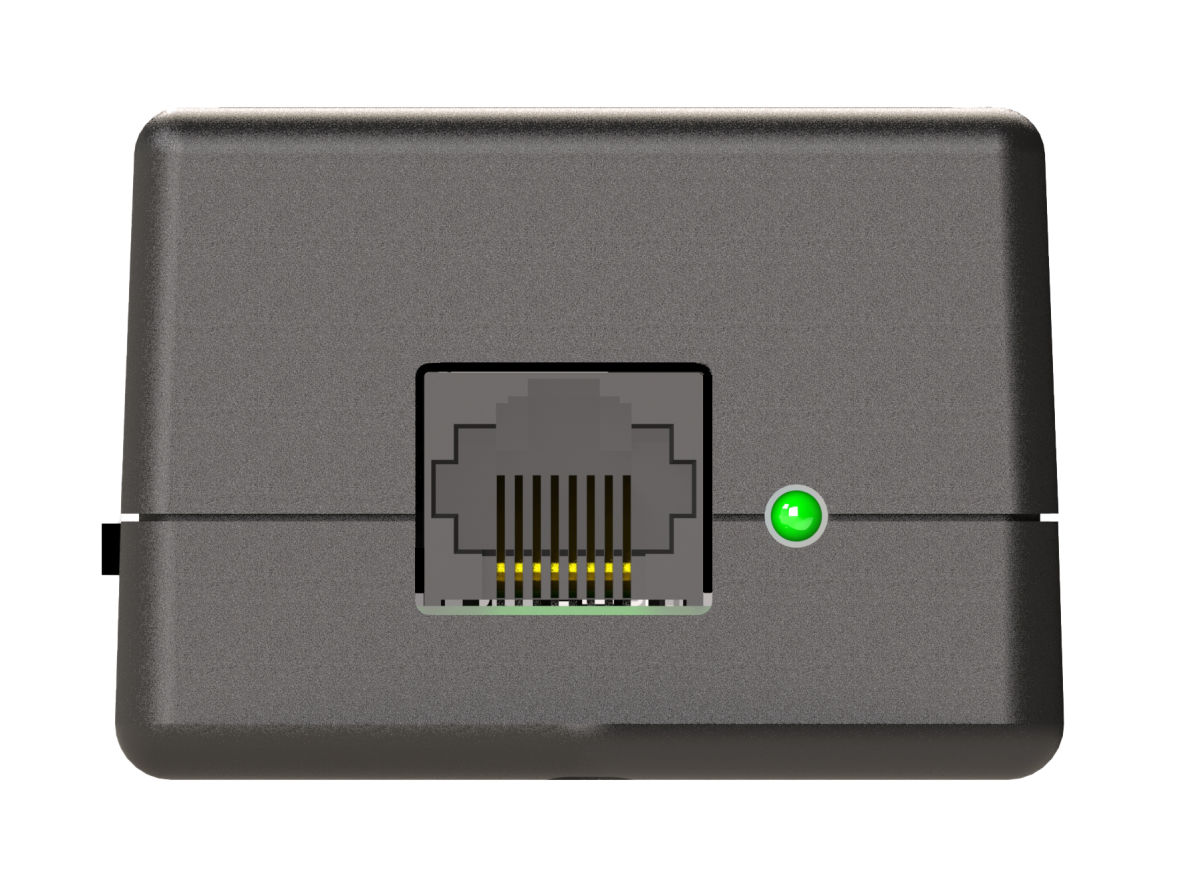

model SIG-0 (left)

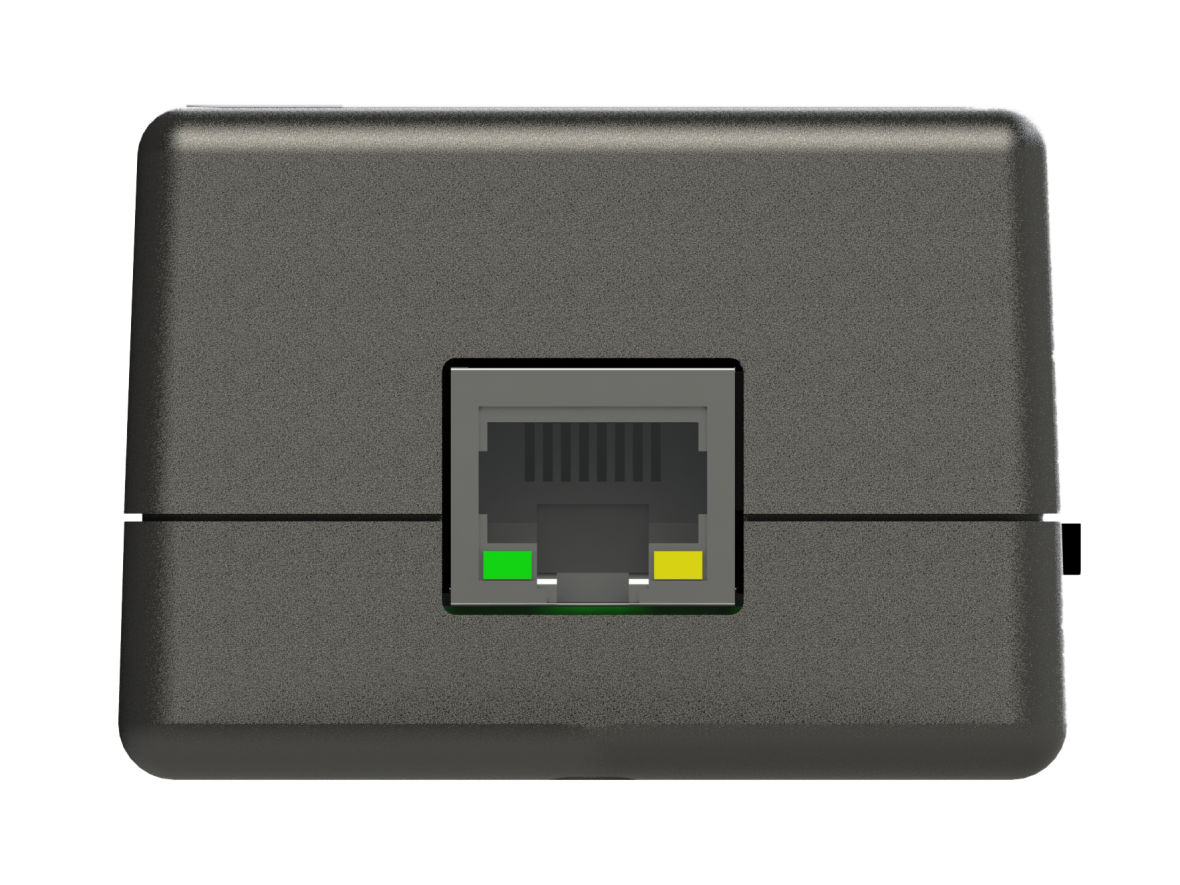

model SIG-0 (right)

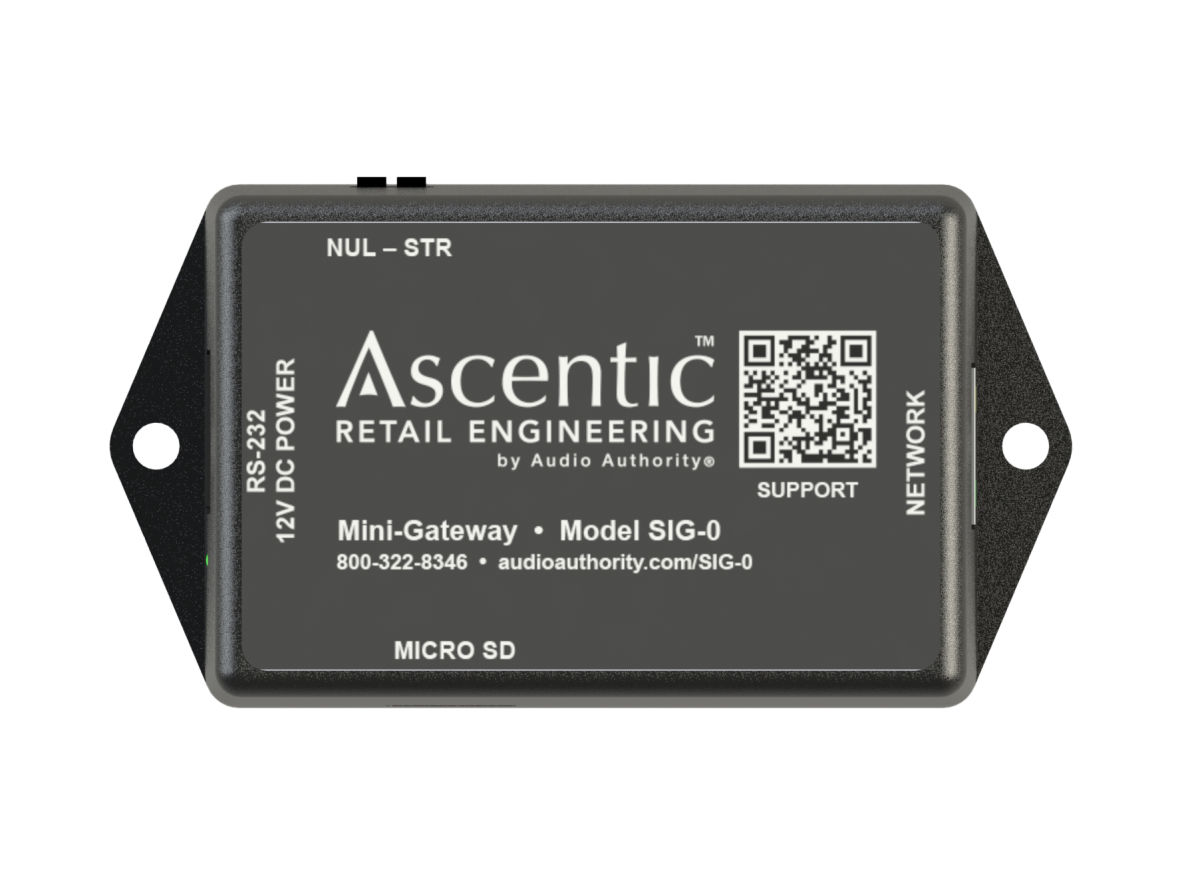

model SIG-0 (top)

Model SIG-0 Communication Bridge

Model SIG-0

  • Communication bridge between RS-232 and network
  • Able to load, configure, and store information
  • Packages and exports RS-232 data
  • Integrated configuration mode
  • LED network indicator
  • Multiple ways to update firmware
Usage
  • Serves as a communication bridge between an RS-232 device and a network device
  • Able to load, configure, and store information via serial commands or a configuration file on a microSD card
  • Packages incoming RS-232 data for export to the controlled device
  • SIG-0 device is able to be configured via RS-232 port after entering configuration mode
  • LED indicator to confirm network connection
  • Multiple ways to update firmware via microSD or RS-232 Port

Communication Bridge

The SIG-0 Mini-Gateway is a communication bridge that connects a powered RS-232 hub and a TCP socket to facilitate communication between the RS-232 and network devices. The SIG-0 must receive power through the RJ45 serial connection cable from a compatible device such as Model 1798. Configure and store data directly on the device via the integrated microSD port or serial commands. The device can be mounted directly to a flat surface using the mounted flanges.
