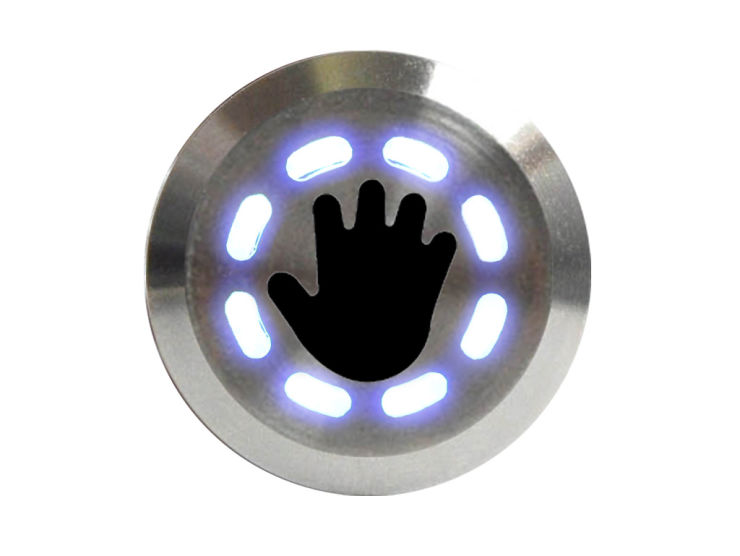

px-100

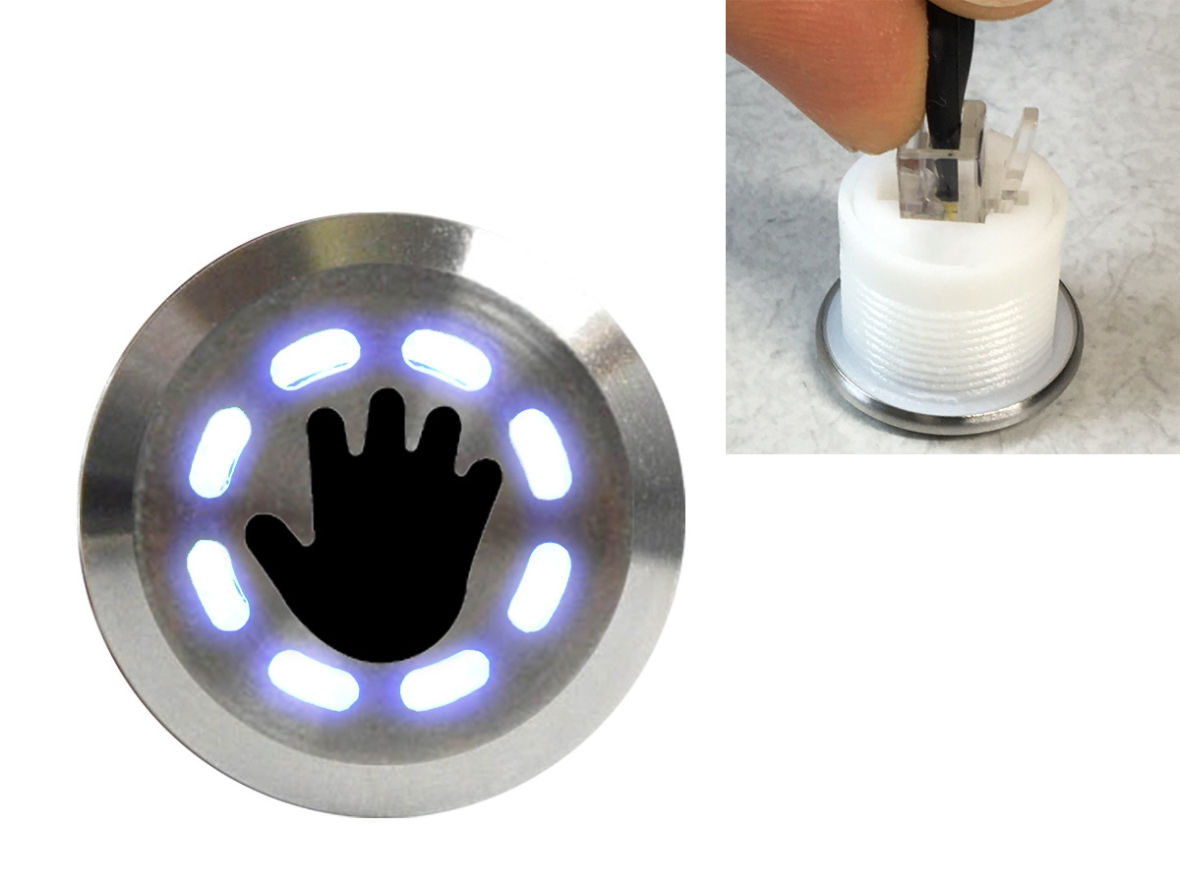

px-100 connection

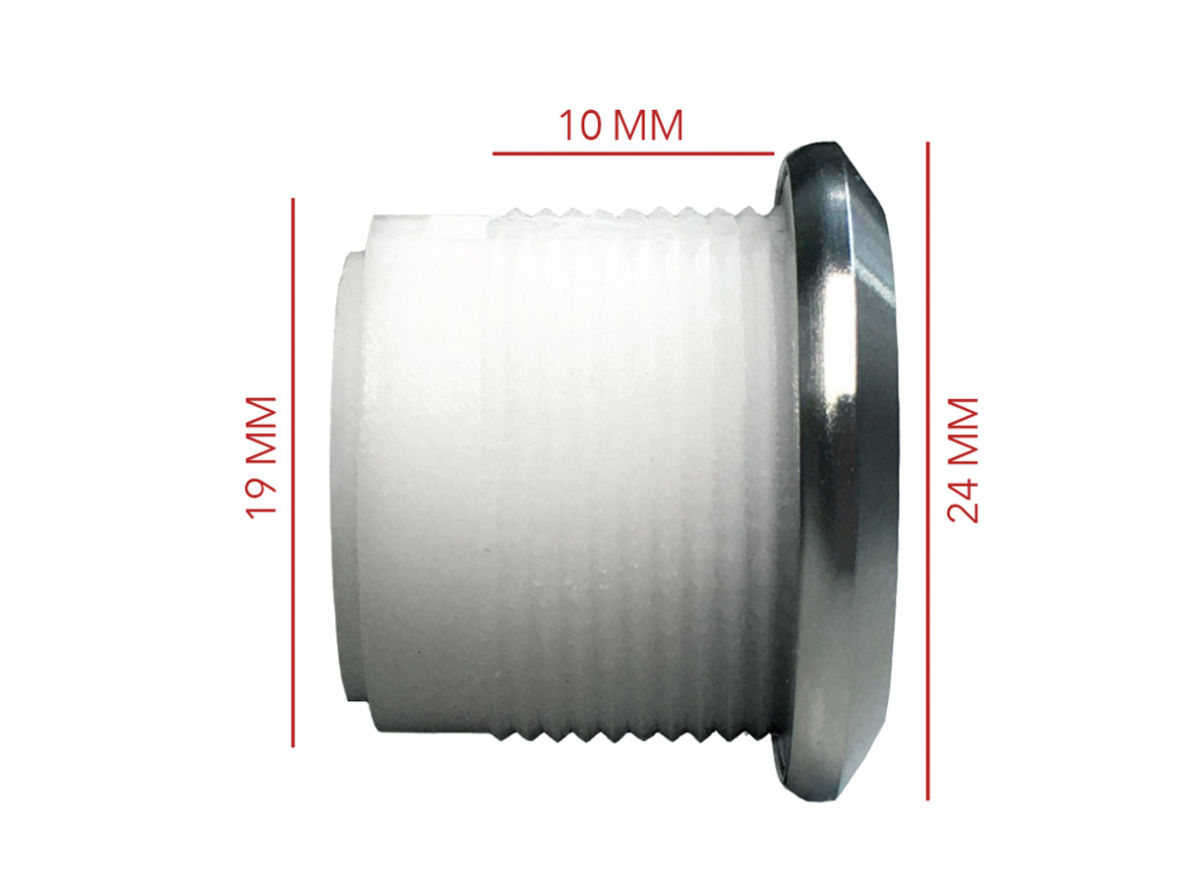

px-100 dimensions

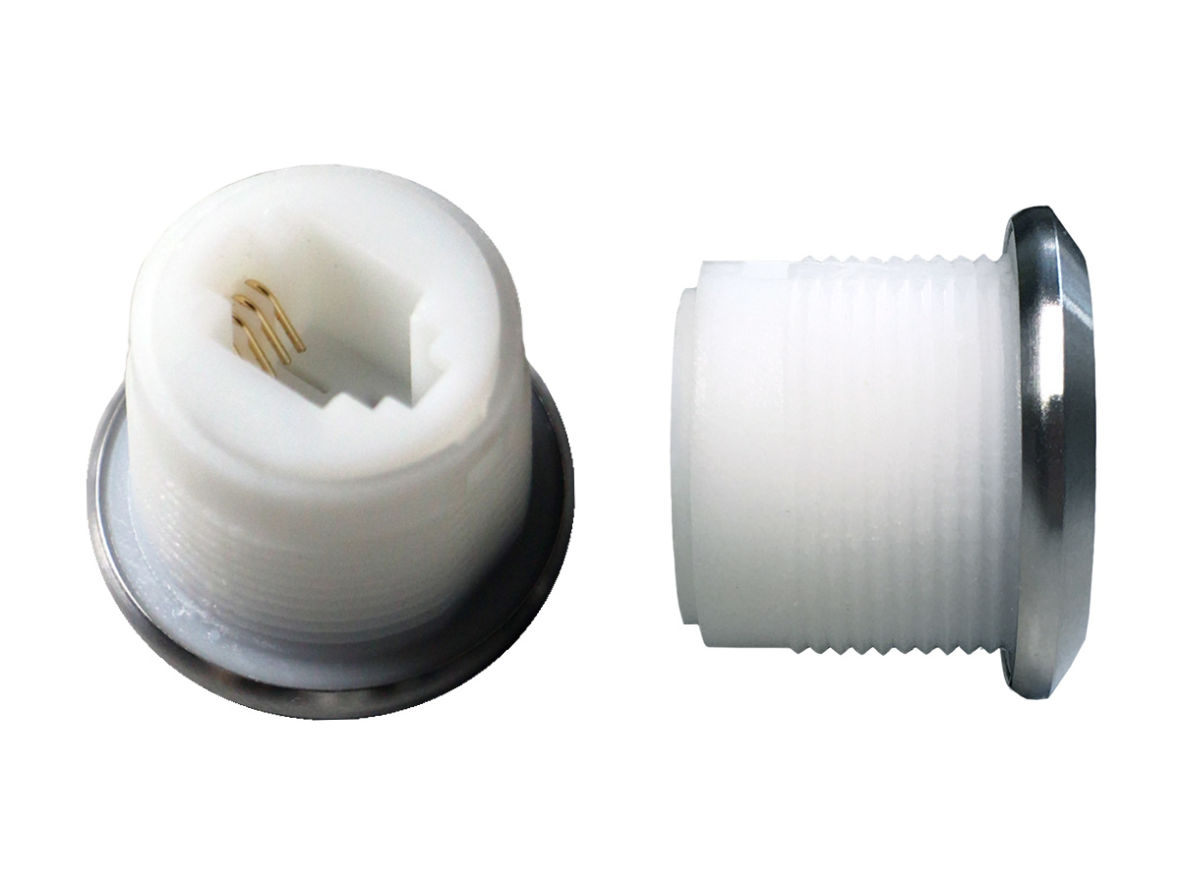

px-100 side and rear

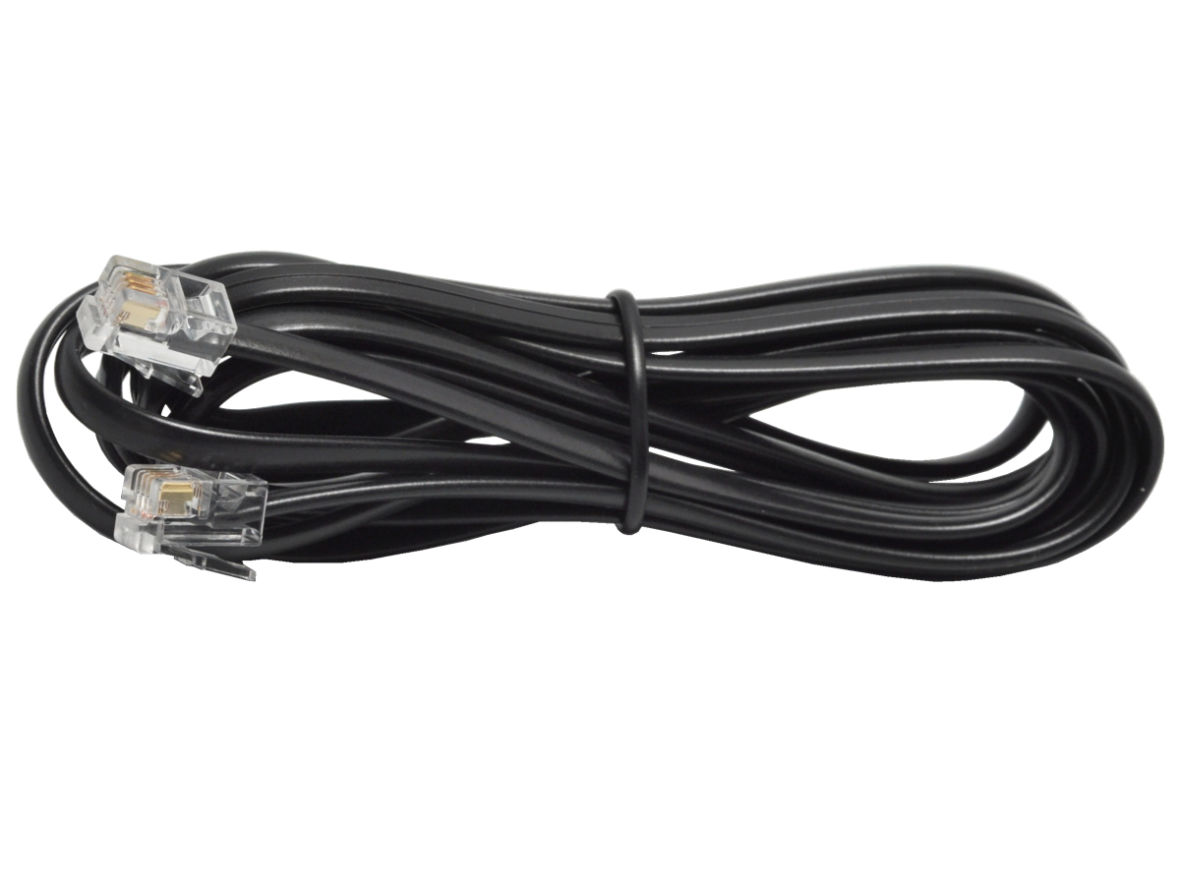

RJ9 Connector cable

PX-100 AirSelect Proximity Sensor (RJ9 Connector)

Model PX-100

  •  Hole size: 0.75 inch (19 mm)
  •  Outer diameter: 0.93 inch (24 mm)
  •  Maximum panel thickness: 0.25 inch (6.5 mm)
  •  Required depth: 1 inch behind front panel surface
  •  Illumination: white LED
  •  RJ9 cable is available in several lengths – sold separately
Usage

This illuminated stainless steel sensor is designed to replace traditional push-buttons in retail displays. The LED lights invite customers to interact, and confirms selections. Connects with RJ9 cables (available in several lengths). The standard 802-807 harness is 1.5m long, with other lengths available upon request.

Why is the AirSelect Sensor Special?

The PX-100 offers several advantages:

  • Sensors eliminate the need to touch displays, keeping shoppers safe from pathogens
  • The hand shaped sensor window invites users to interact in a familiar, safe way – just like a paper towel dispenser
  • The PX-100 is a drop in replacement for 19mm switches, taking advantage of existing demo systems
  • Compatible with most electronic demo systems
  • The RJ9 plug is simpler than other four-wire connections – there is no way to get it wrong, and the latch ensures a secure connection
  • The cable plugs directly into the back of the switch, eliminating the process of feeding cumbersome wires through the hole, or the addition of “pigtail” disconnects in the wire



Drawings
