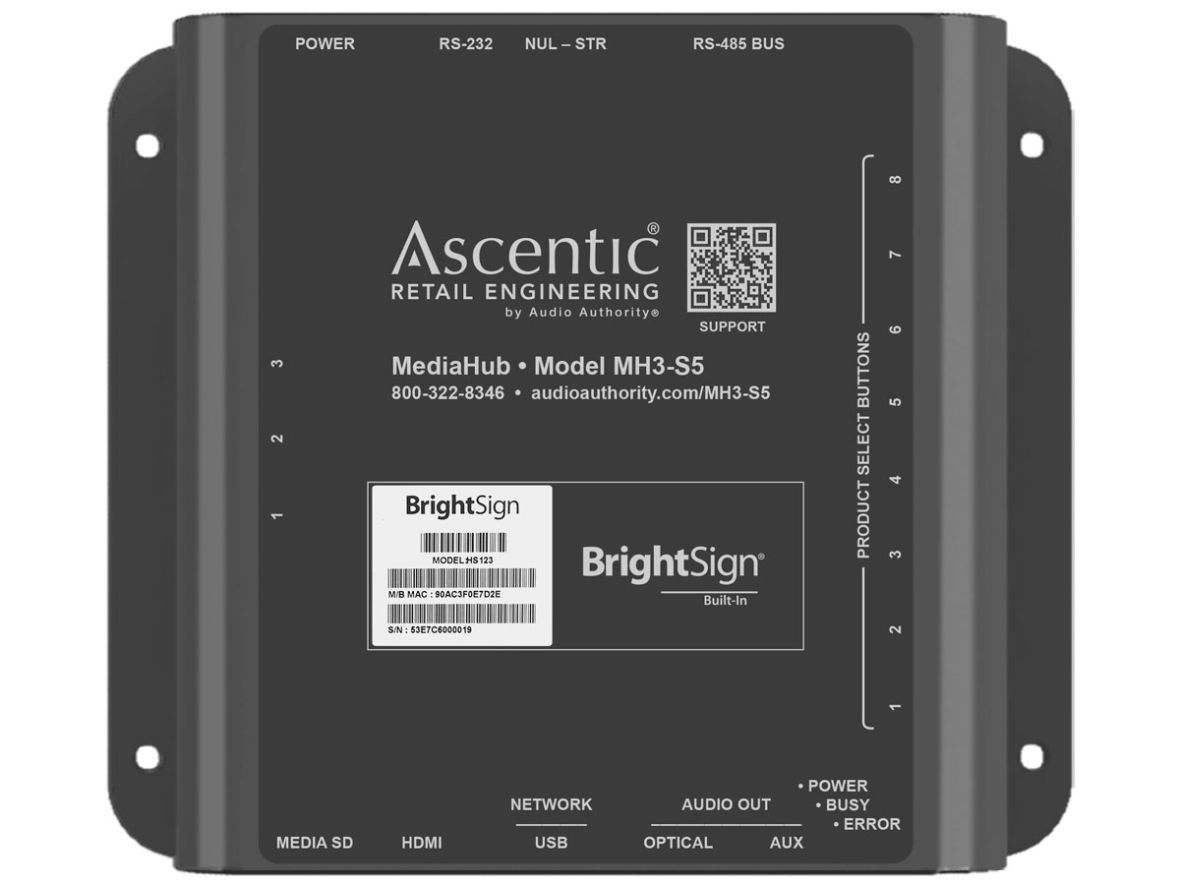

Model MH3-S5 (top)

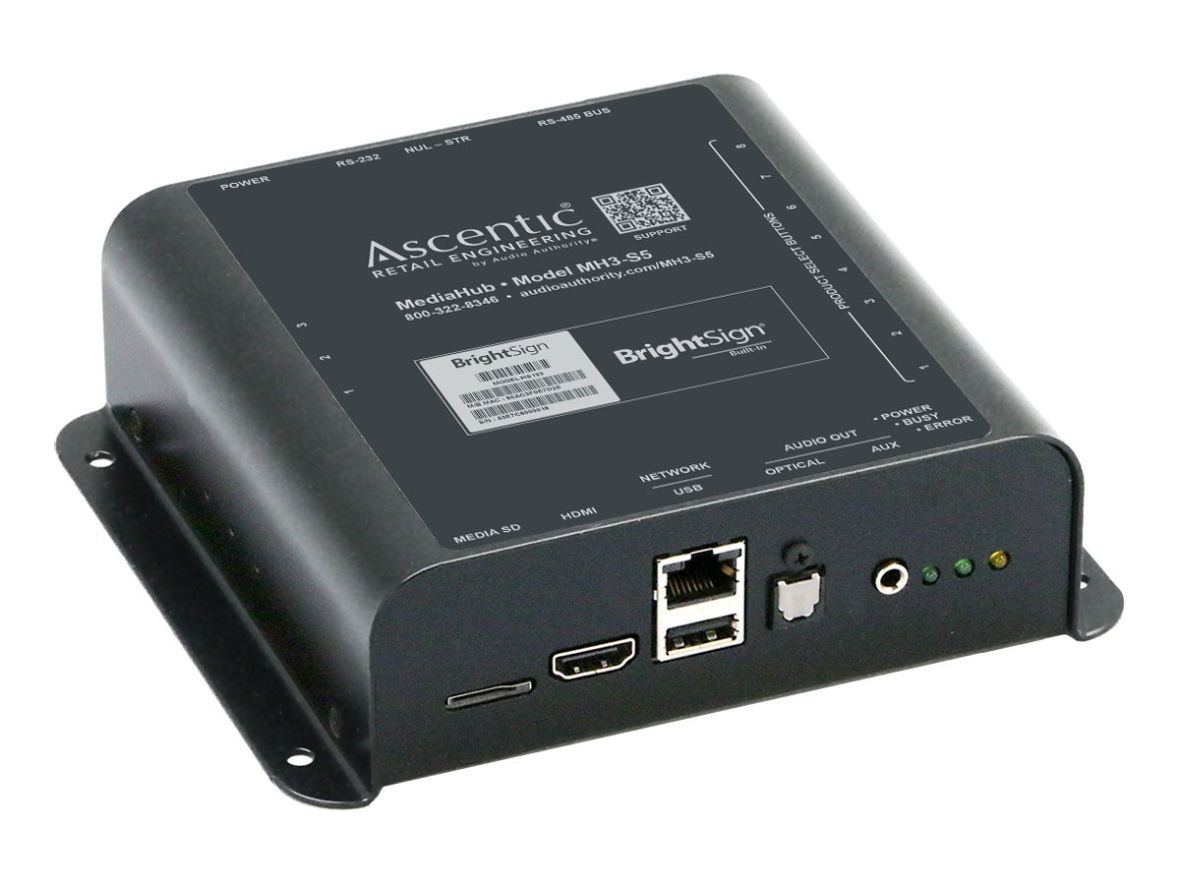

Model MH3-S5

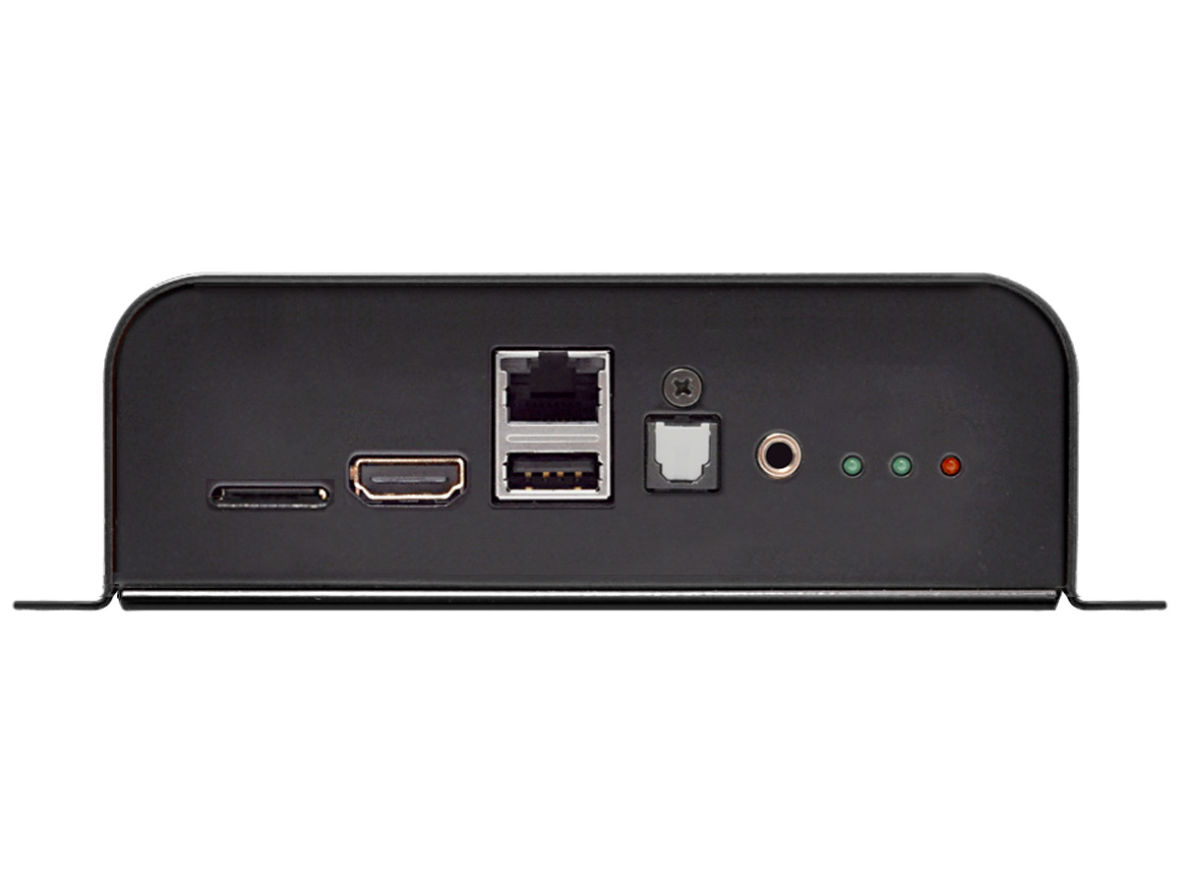

Model MH3-S5 (front)

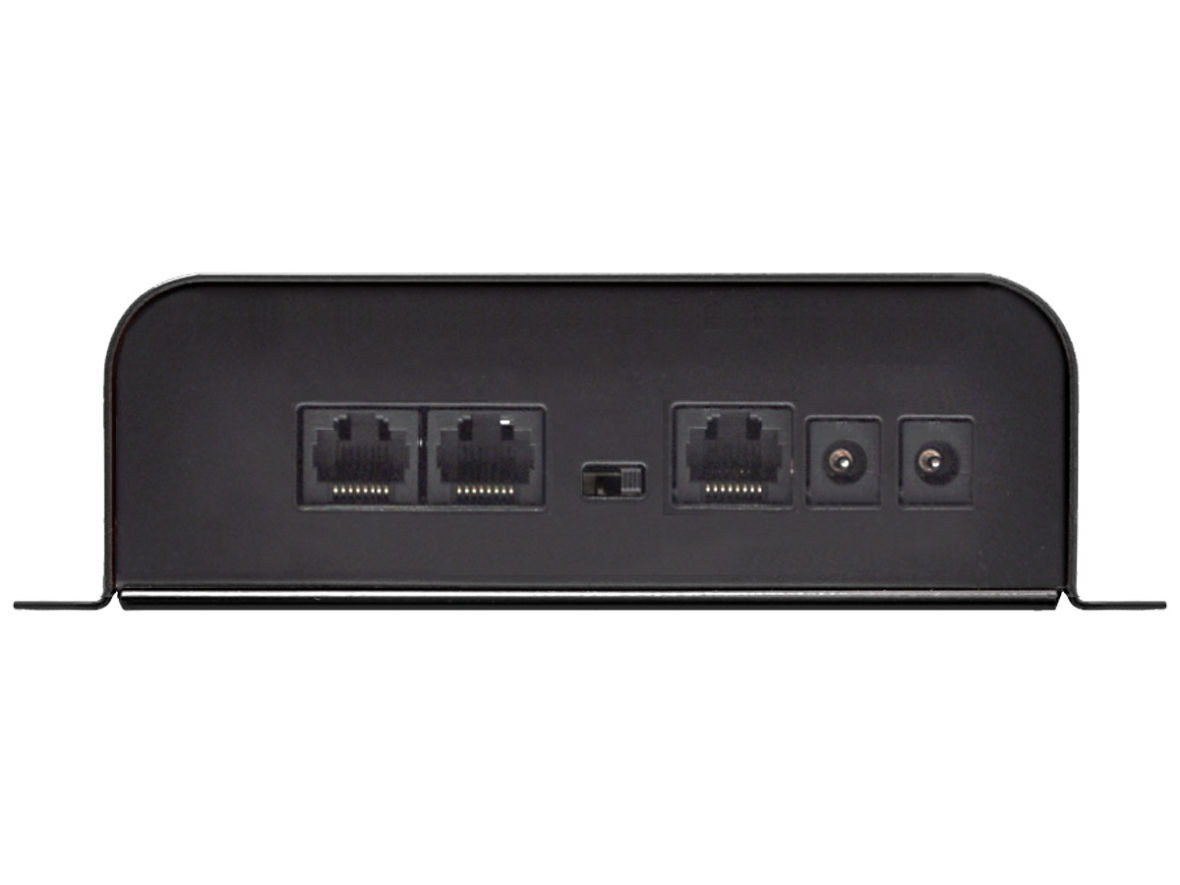

Model MH3-S5 (back)

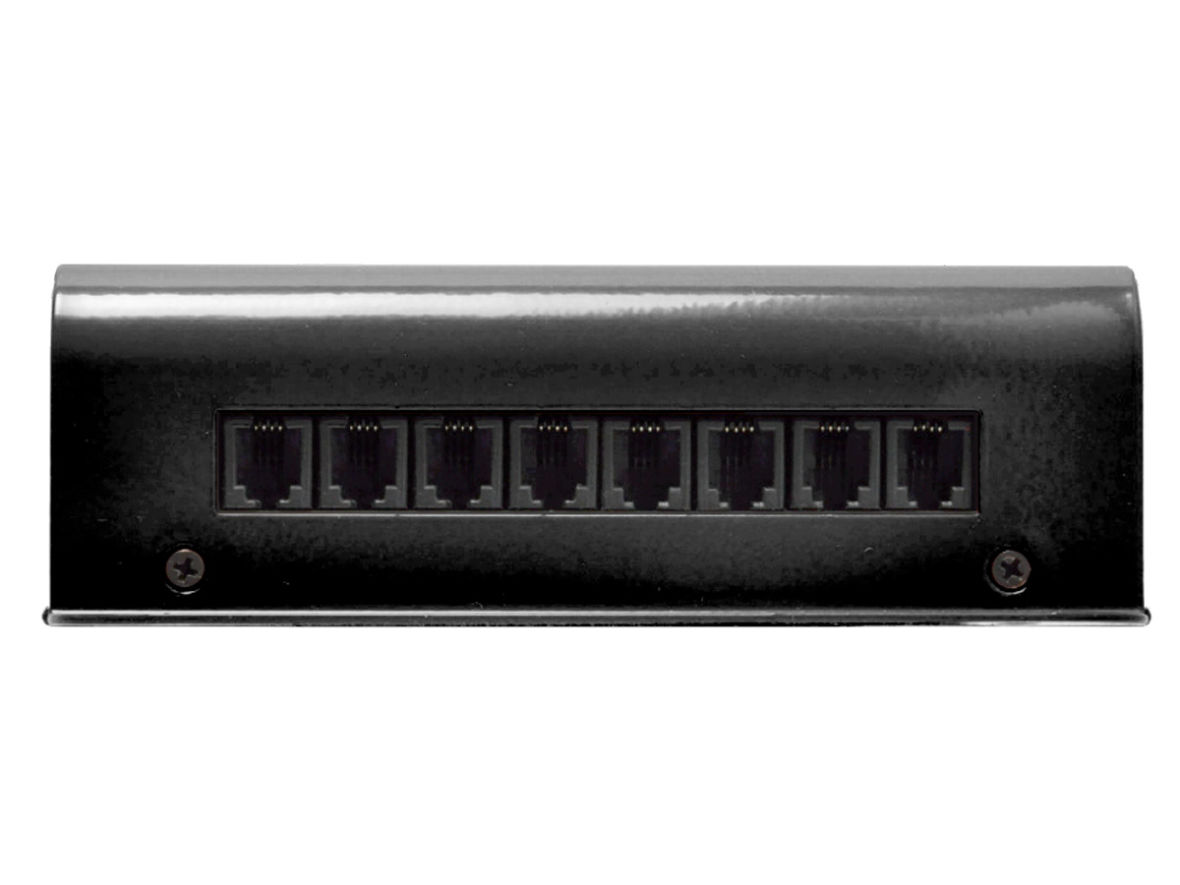

Model MH3-S5 (side)

MH3-S5 Media Hub

Model MH3-S5

  • BrightSign® digital signage module
  • 4096×2160@30Hz with discrete digital and analog audio
  • CEC control via HDMI port
  • Eight ports for push-buttons or sensors
  • Connect touch screen, touch panel, or volume knob
  • Network port for updates and control
Media
  • Audio-video MediaHub with Integral BrightSign® player
  • Video output: 4096×2160@30Hz and digital audio (HDMI)
  • CEC control (HDMI port)
  • Discrete digital and analog audio outputs (optical and 3.5mm)
  • Programmable push-button ports (RJ9 x8)
  • Control ports for peripherals (RJ45 x3)
  • USB port for touch screen or other device
  • Ethernet port for remote updates and control
Application Example

Digital and Analog Headphones with Video – This display leverages the MH3-S5 Media Hub’s multiple audio output options to demonstrate a variety of products. The audio output jacks can play either digital or analog audio, depending on the requirements of the device. The HDMI output interfaces with a 4K TV that informs the customer about each product. Eight AirSelect touchless sensors provide an intuitive and inviting way to select each product.

Interactive HD Demonstrator

The Model MH3-S5 combines BrightSign’s media-playing muscle with the interactivity you expect from Audio Authority®. With a BrightSign digital signage module built-in, the MH3-S5 produces flawless 4K@30 video and uncompressed audio, with all the custom capabilities made possible by BrightAuthor software.

Extensive inputs and outputs on the MH3-S5 provide many ways to interact – eight ports for push-buttons or sensors and three serial ports for external control devices including touchscreens and touch panels. Assign behaviors to any control – transport controls, product selection or other custom commands. Media and BrightAuthor programming may be updated via network.

  • Audio Formats: MP3 (mono or stereo) @ 44.4kHz or 48kHz, WAV (mono or stereo) @ 96kHz, 48kHz, or 44.1kHz
  • Video Formats: MP4 and MOV (without metadata) with AAC or AC3 audio (pass-thru)
  • Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2, MPEG-1
  • Extended compatibility with the latest Ascentic peripherals
  • Dimensions (HxWxD, inches):  5.4 x 5.2 x 1.8
  • Communication: USB-A, RS-485 control ports (x2), RS-232 port (Baud rate is software selected), Ethernet
  • SD or SDHC media card
  • Power Supply: 12V DC, 5A
