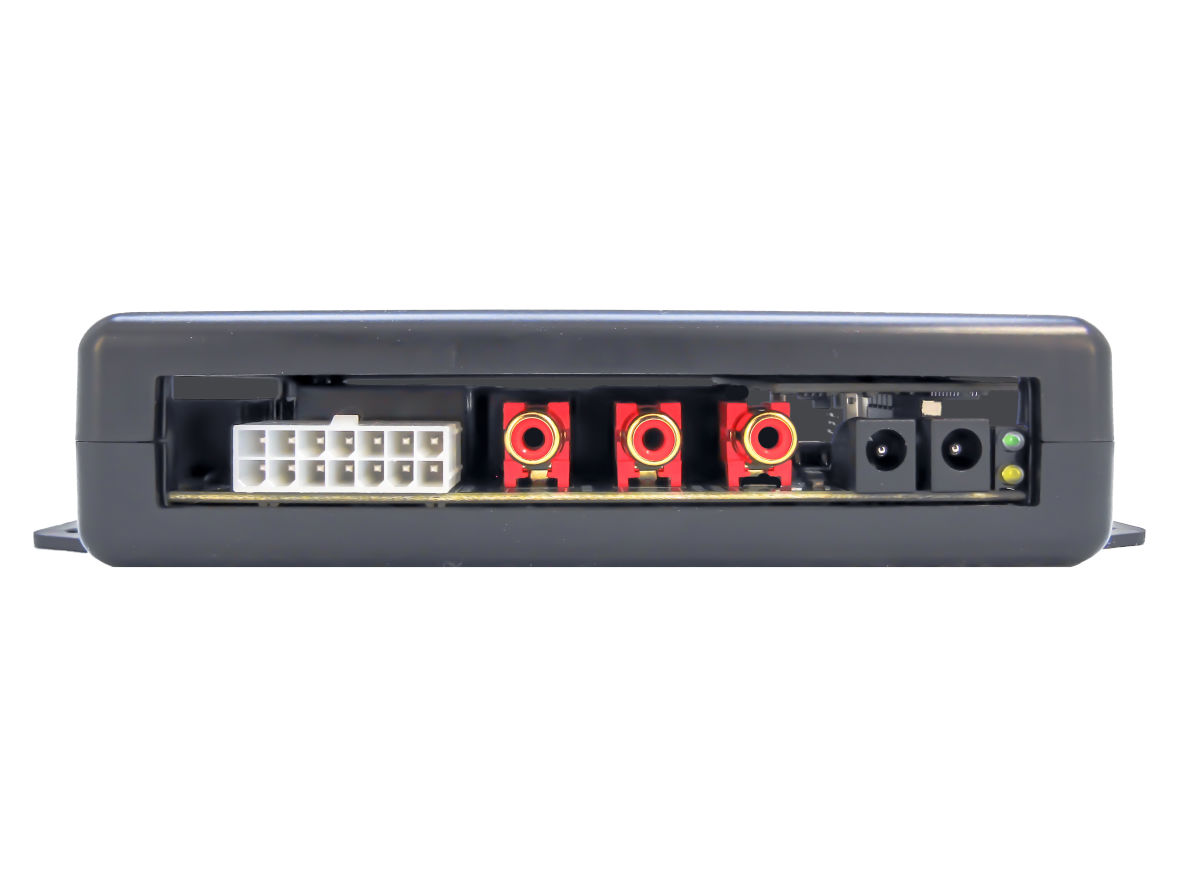

hls-71-ip top

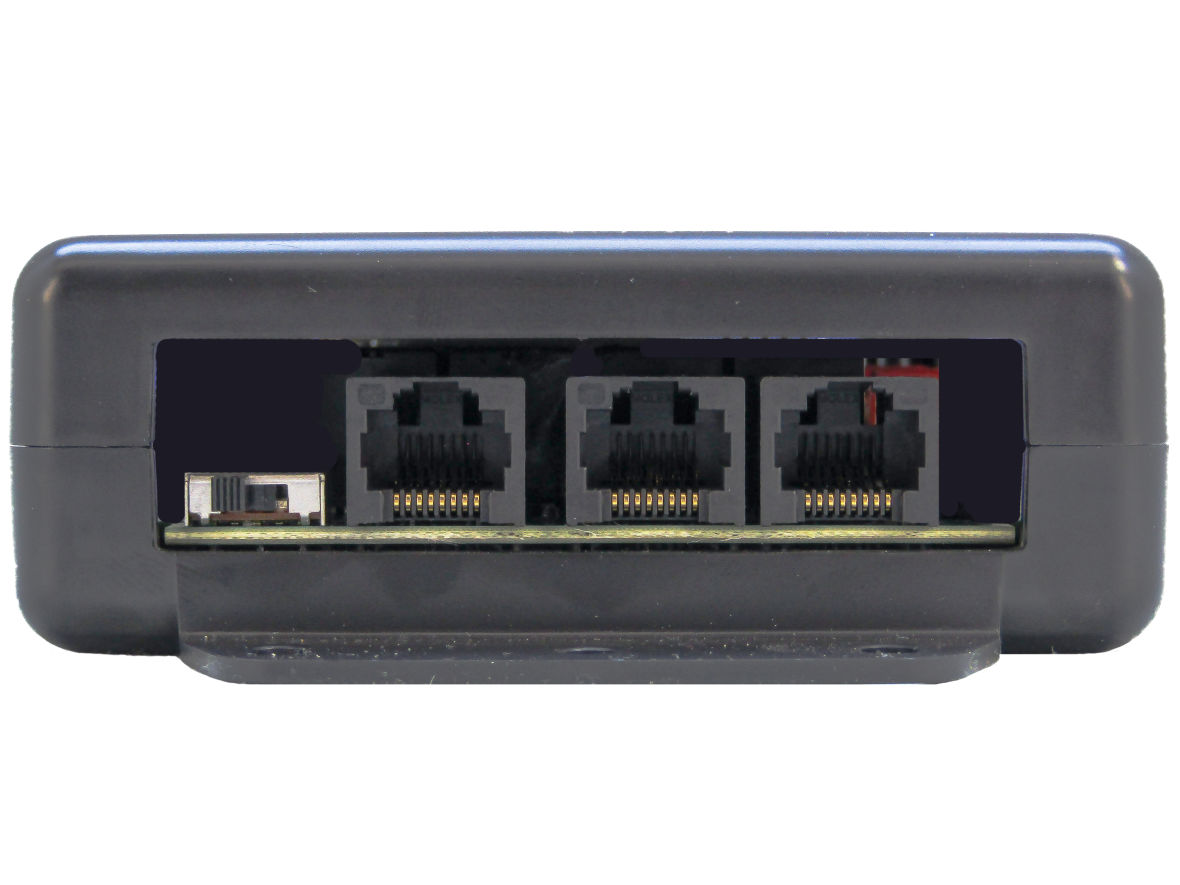

hls-71-ip side 4

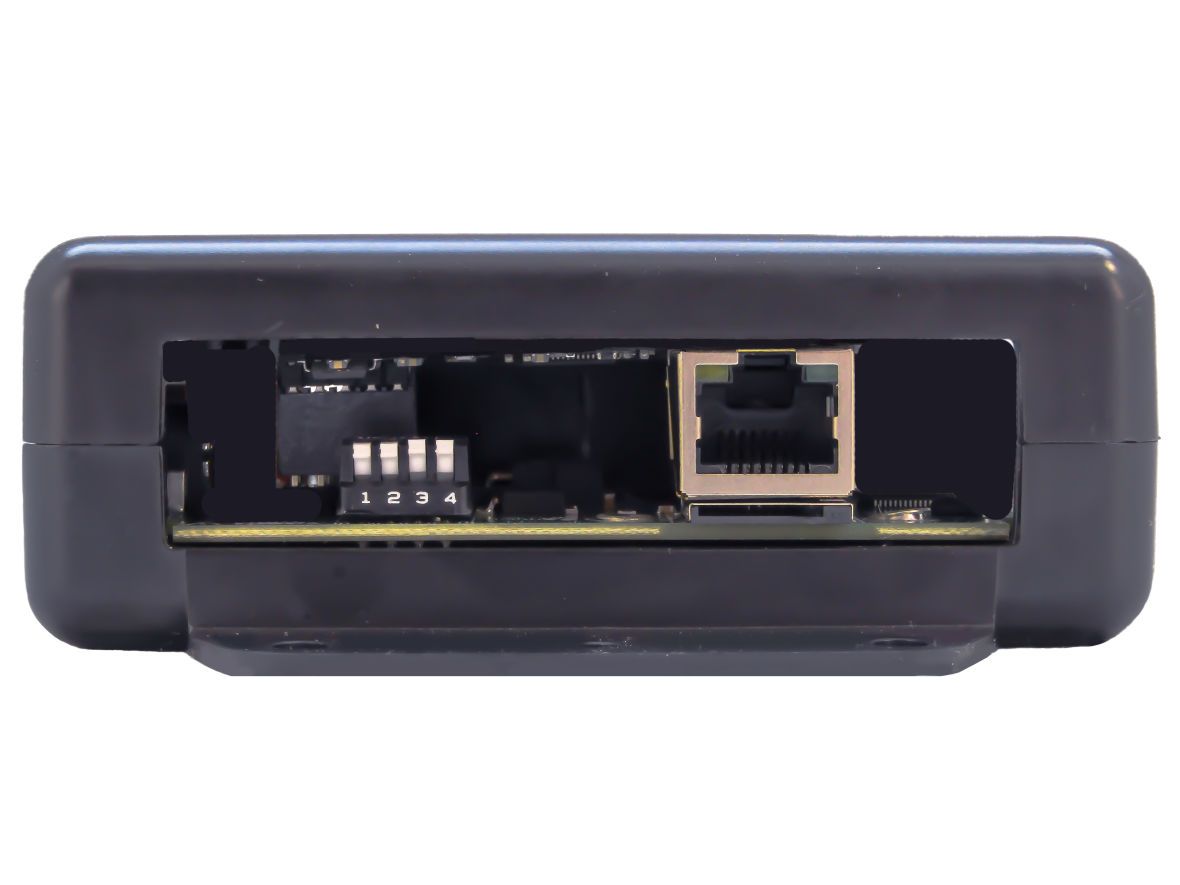

hls-71-ip side 3

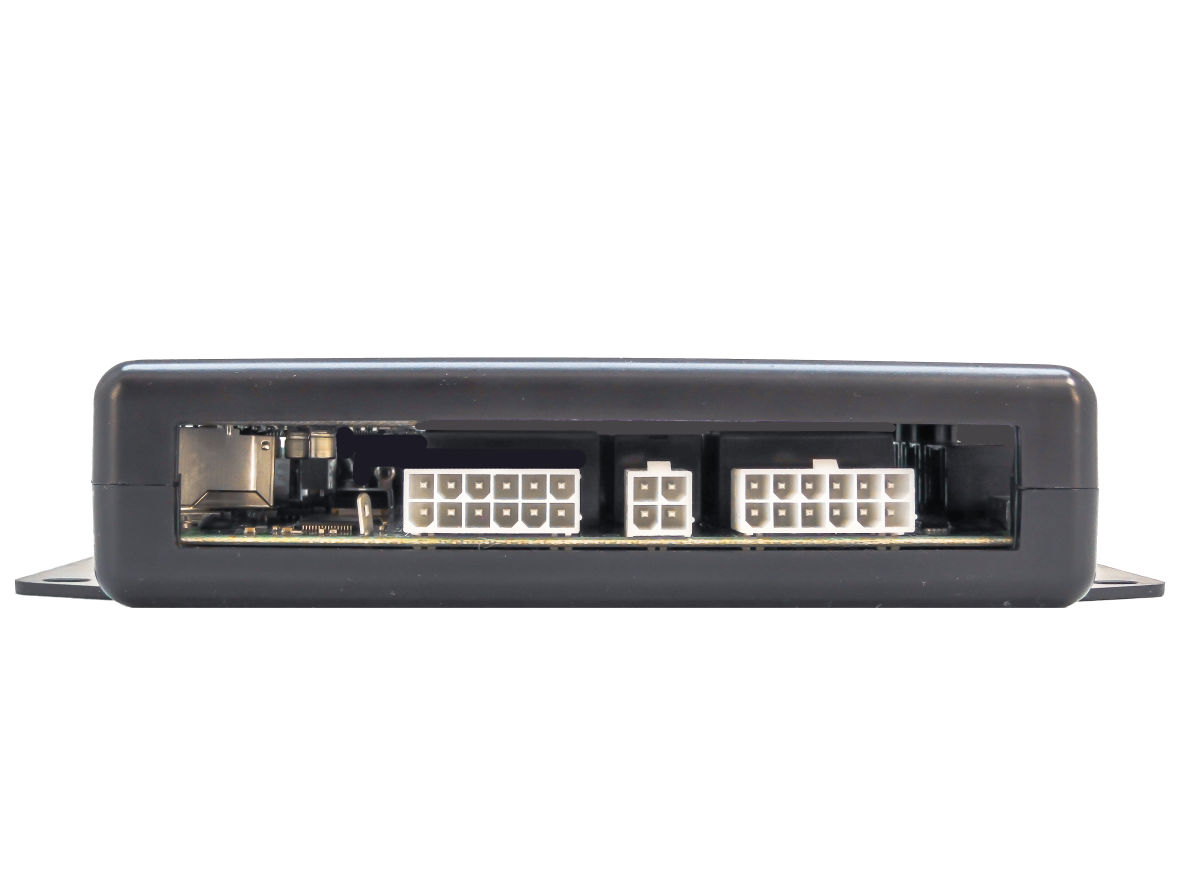

hls-71-ip side 2
hls-71-ip side 1

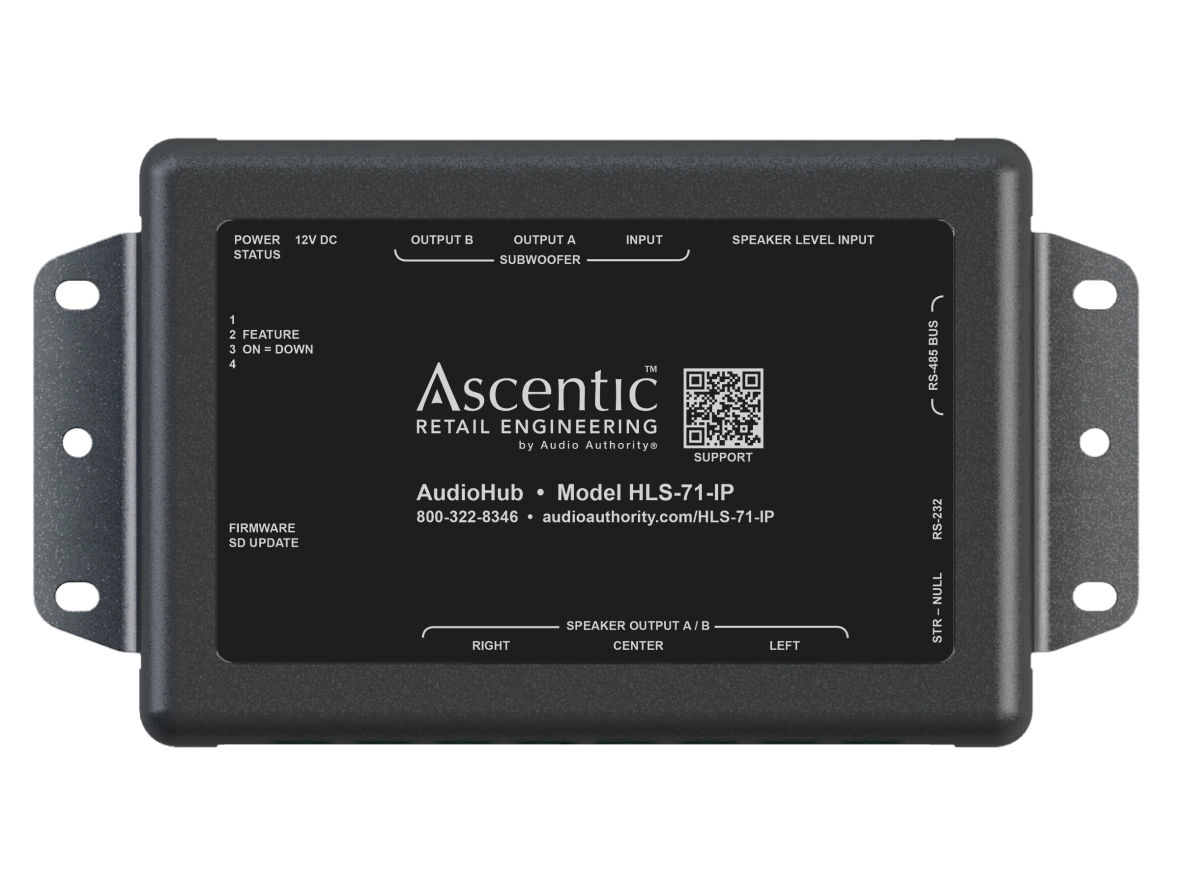

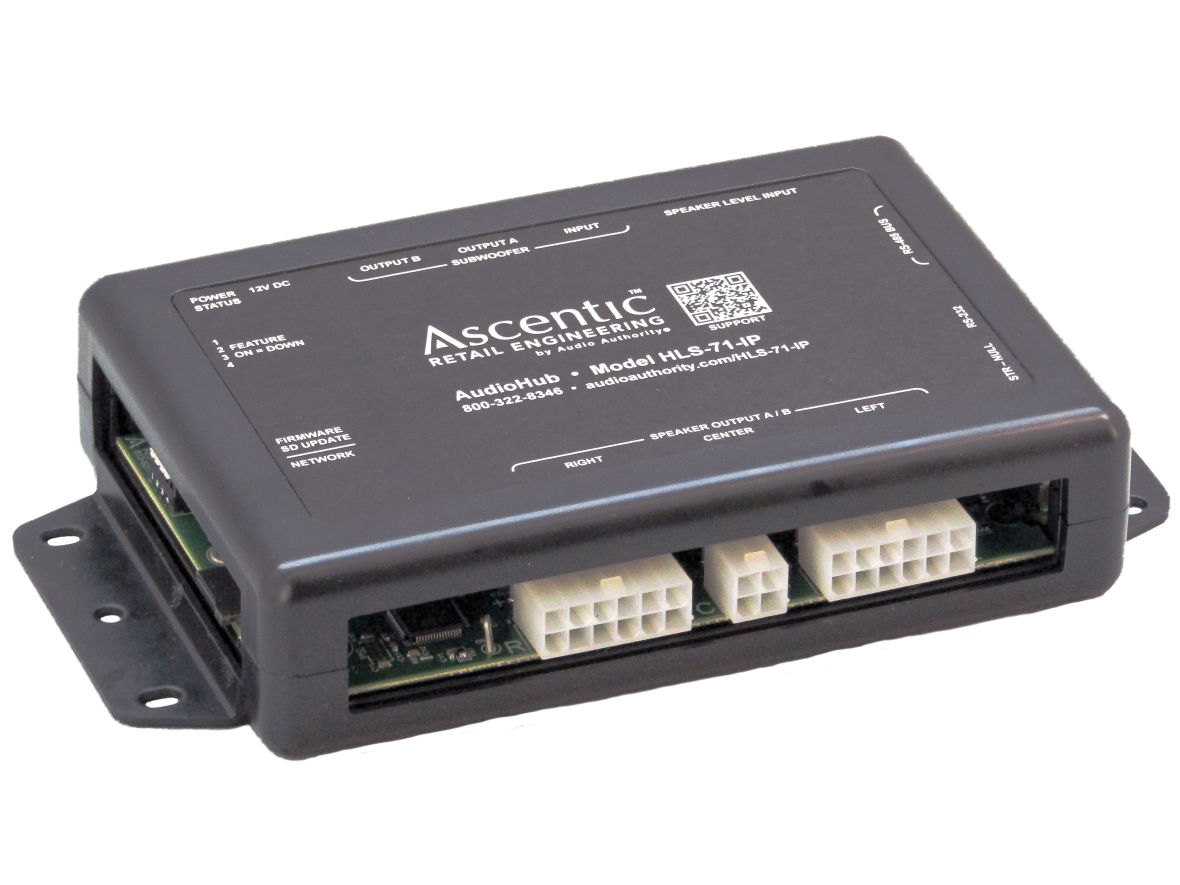

Model HLS-71-IP Serial to Internet Gateway

Model HLS-71-IP

  • Switches up to seven channels between two outputs.
  • Measures input voltage, current draw, and peak current draw.
  • IP module enables remote access to device
  • Firmware updated via microSD.
Features
  • Switches up to seven channels of High-Level audio and one LFE audio channel between two outputs.
  • Measures input voltage, current draw, and peak current draw for device health monitoring.
  • IP module (HLS-71-IP) enables remote access to device functions, configuration, and event logs.
  • Firmware updated via microSD.

Intelligent High-Level Audio Switching For Quality Demonstrators

The HLS-71 Intelligent Audio Switcher controls 7.1 channel audio systems between two sets of outputs. This device also monitors system health. Firmware is updatable via the microSD port.

Power Entry Port: 2x barrel jack connectors (5.5 x 2.1mm, bussed, center positive)

Voltage: +12V DC

No-Load Current: 145mA

Maximum Load Current: 350 mA

Maximum Current Output:
RS485 Bus: 1.25 A @ 12.0VDC

Case Type: Ascentic universal case, molded ABS

Case Dimensions:
W x L x H 7.5” x 4.1” x 1.5”
190mm x 104mm x 38mm

Mounting Locations: molded flanges
Centerline Holes: 2x 0.165” (4.5mm) diameter Slots: 4x 0.165” x 0.28” (4.5mm x 7mm)
1.0” (25.4mm) above/below center line holes
