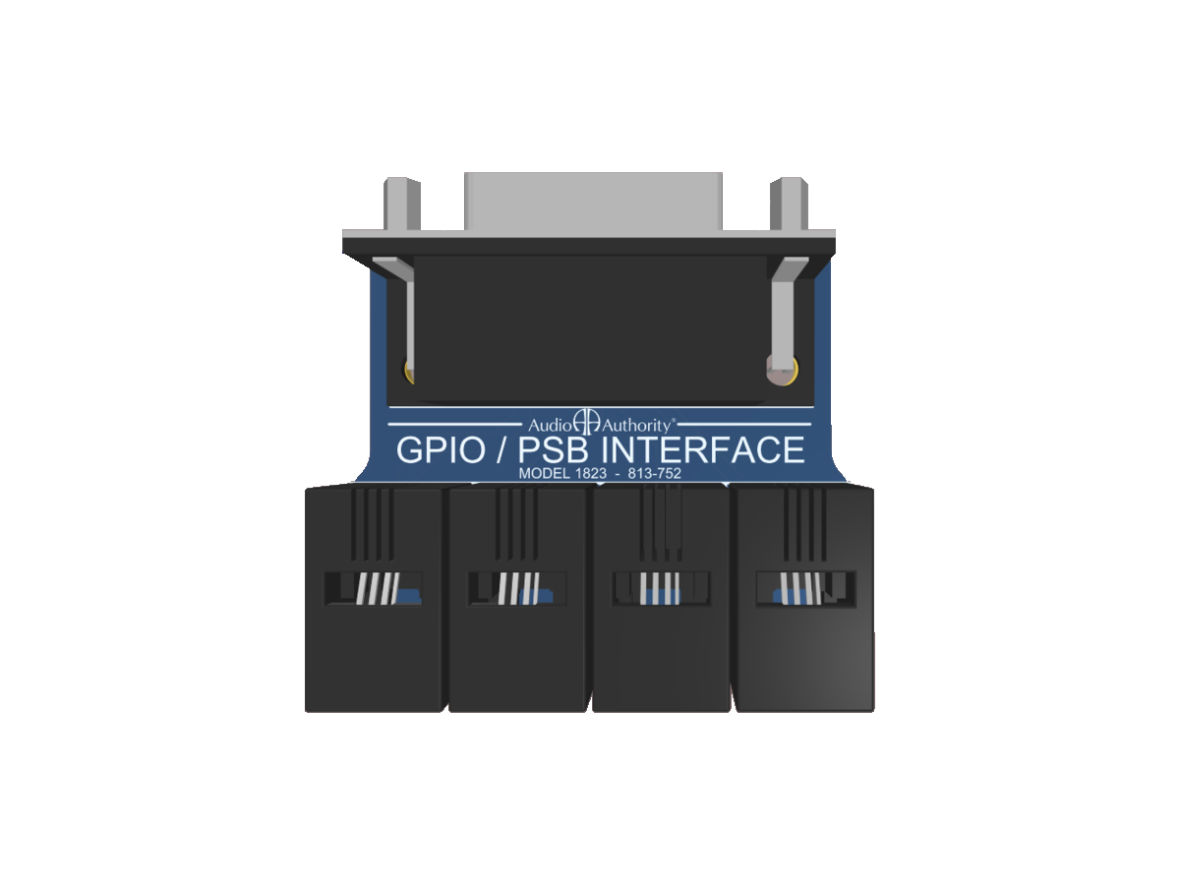

Model 1823 GPIO Adapter

Model 1823

  • Adapts BrightSign® DB-15 RS-232 port to push-buttons
  • Customize button behavior using BrightAuthor
  • Four button positions
  • RJ9 EasyPlug push button connections
Example

A button press allows a custom video track to play when each product is selected.

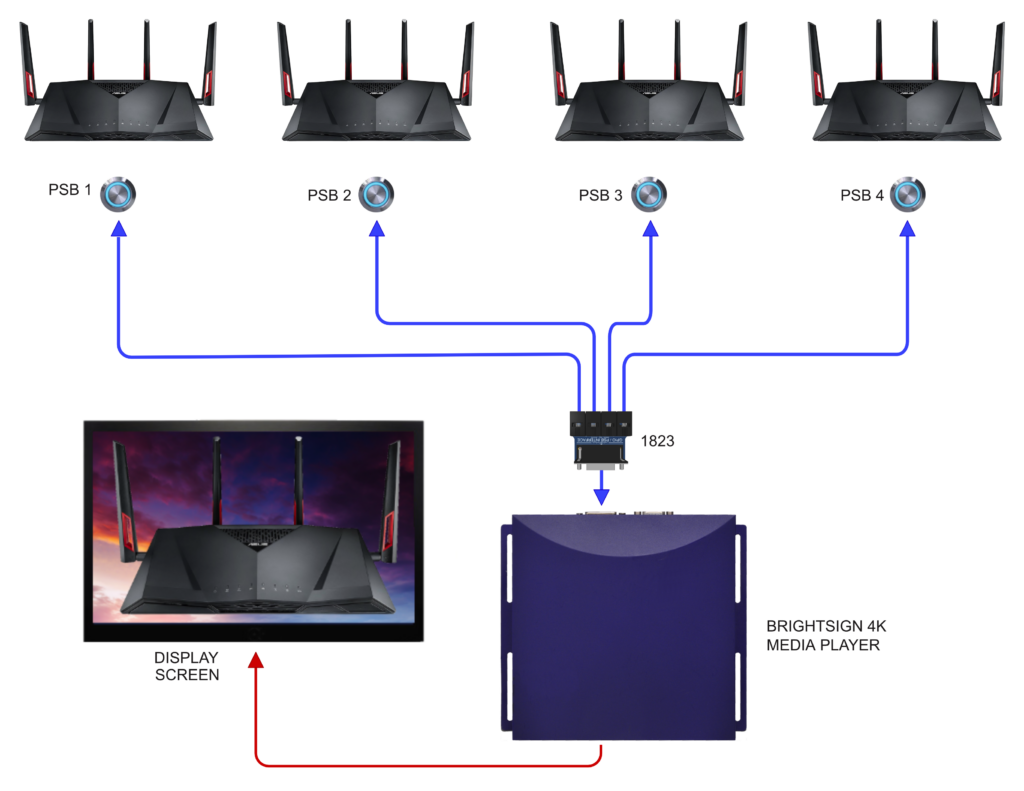

model 1823 example system

Control a BrightSign Legacy 4K Media Player via Push-Buttons

The Model 1823 allows four modular push-buttons to interface directly with the BrightSign DB-15 GPIO ports. Using BrightAuthor, each button may be assigned one or more custom functions.

For a list of Ascentic’s GPIO Adapters and their functionality, view our product matrix here.
