model 1822-1

Model 1822-1 GPIO Adapter

Model 1822-1

  • BrightSign® GPIO port adapter

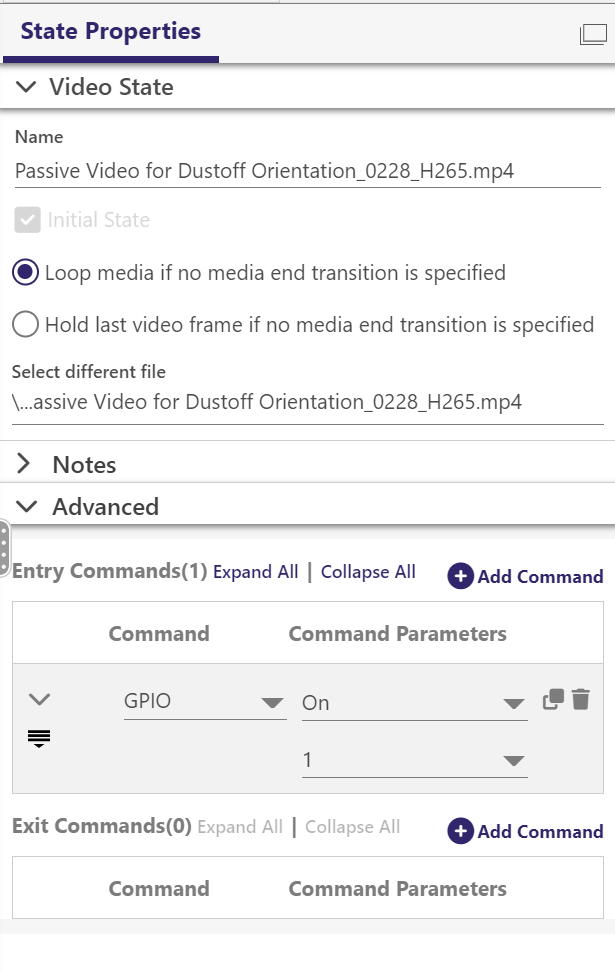

  • Customize button behavior using BrightAuthor
  • Two button positions
  • Custom behavior via Bright Author
  • EasyPlug jack style (RJ9)
BrightAuthor Programming Tips

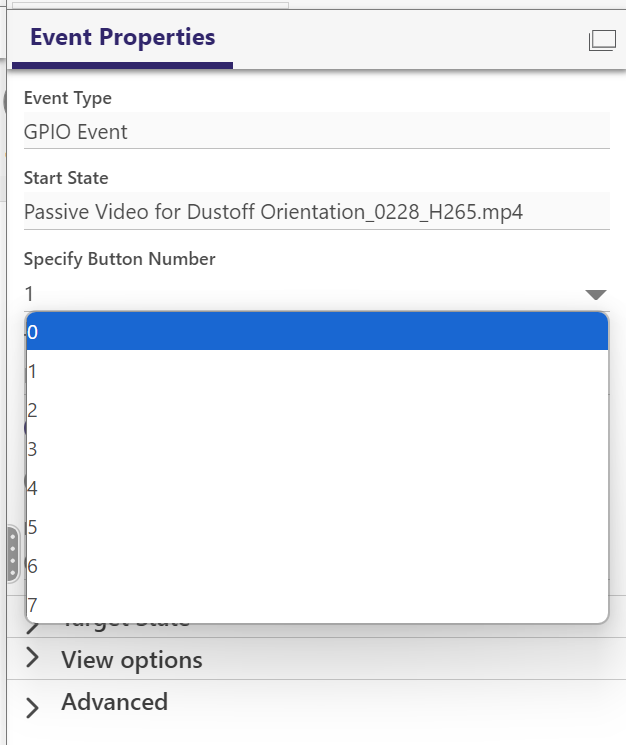

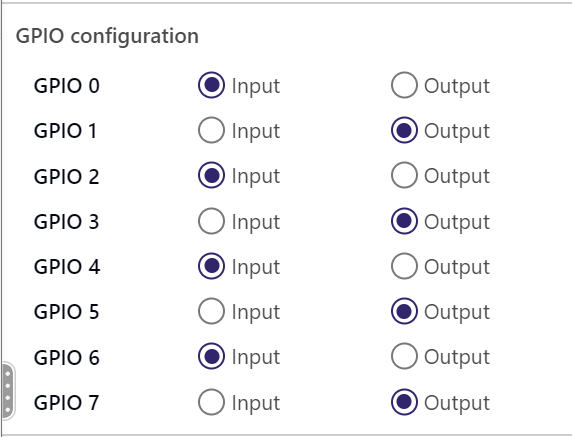

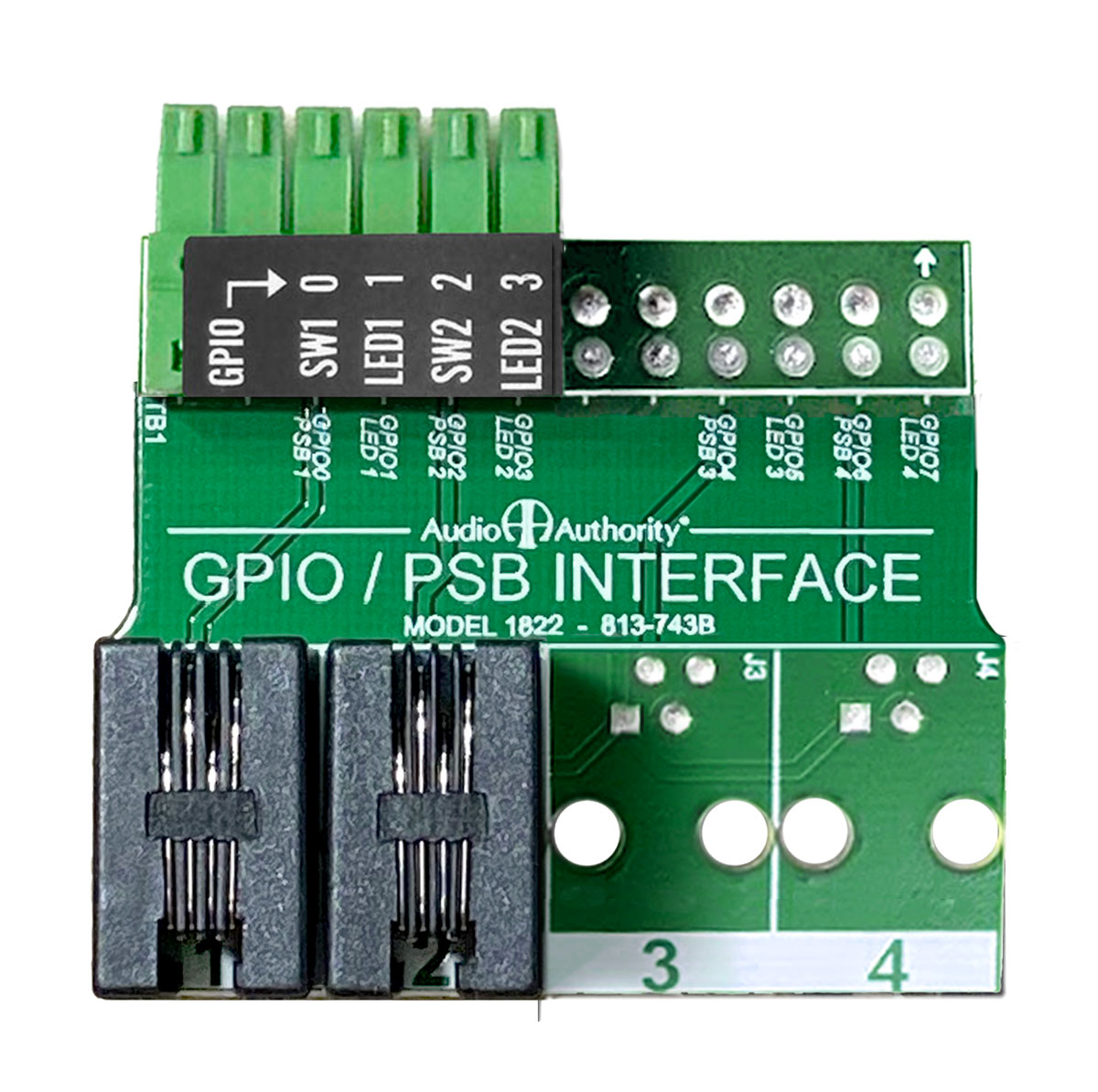

The GPIO mapping is also printed on the circuit board of the 1822. The Brightsign presentation must be set up to have GPIO inputs and outputs. If buttons do not work, it may be in the default “INPUT” only state.

Control a BrightSign Player with Push Buttons

The Model 1822-1 allows two modular push-buttons to interface directly with the BrightSign XD 1033 GPIO ports. Using BrightAuthor, each button may be assigned one or more custom functions.

Compatible devices

For a list of Ascentic’s GPIO Adapters and their functionality, view our product matrix here.

Literature

Manual
