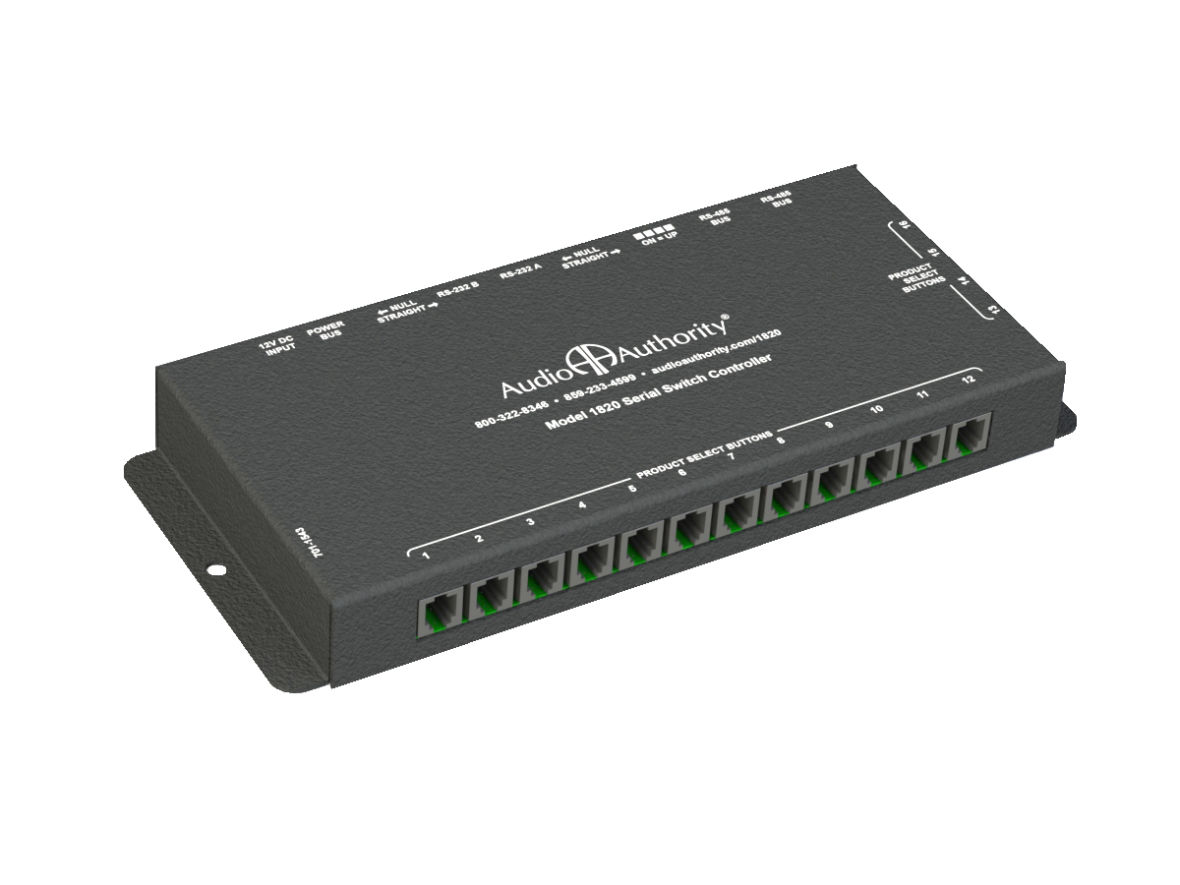

model 1820

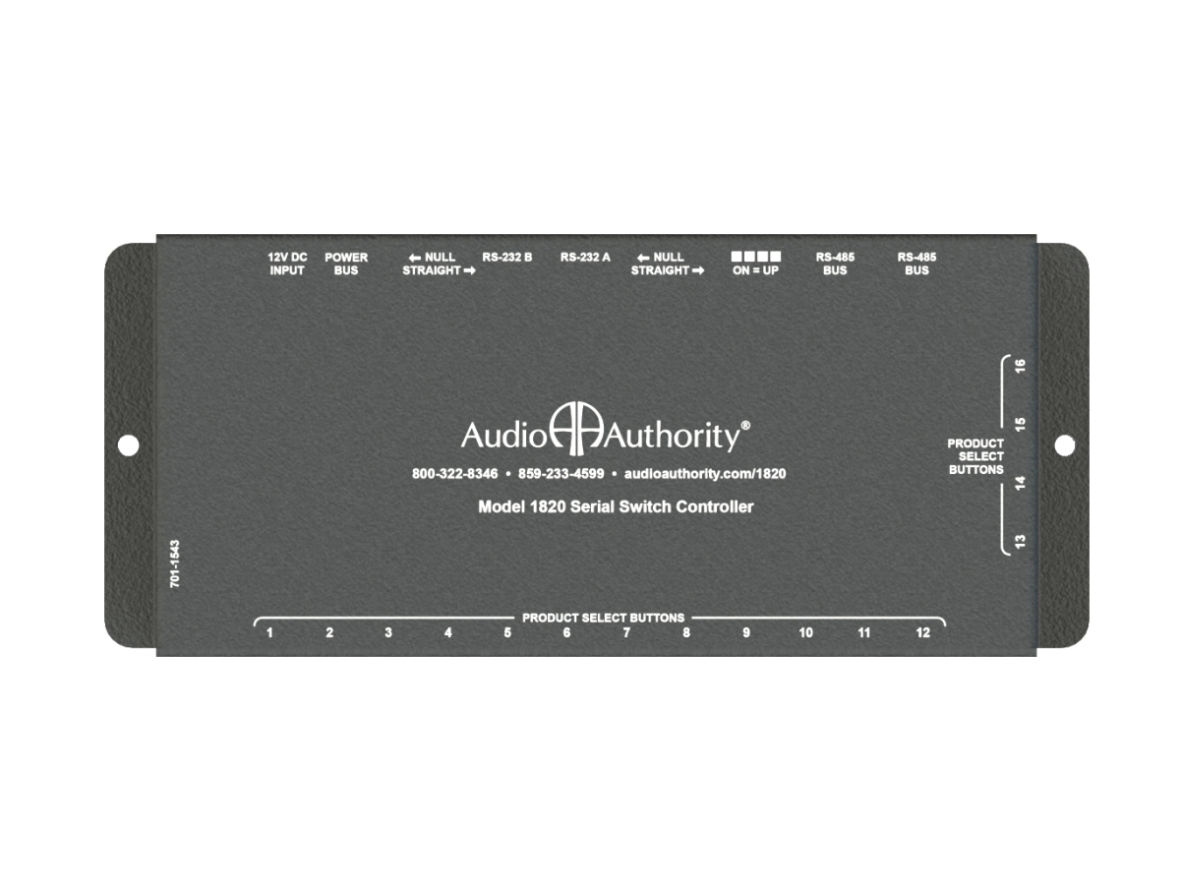

model 1820 (top)

Model 1820 GPIO Adapter

Model 1820

  • 16 ports for Easy Plug push-buttons
  • Host device connects via RS-232
  • Expand up to 256 buttons
  • RJ9 connectors for easy, reliable installation
  • Serial bus links to other RS-485 devices
  • BrightSign compatible via Bright Author software
Example System

model 1820 example system

Push-Buttons Perform Any Function

The 1820 controller interfaces with a BrightSign media player via RS-232. It provides up to 16 push-button ports using modular RJ9 connections and can be assigned by the host device to control functions such as volume up/down, individual track selection, next/previous, and turning audio and video outputs on or off.

Using Bright Author software, the 1820 allows the user to create an advanced demo system that coordinates the audio and video outputs of a BrightSign media player, audio switching, and lighting effects via RS-485.
