model 1818

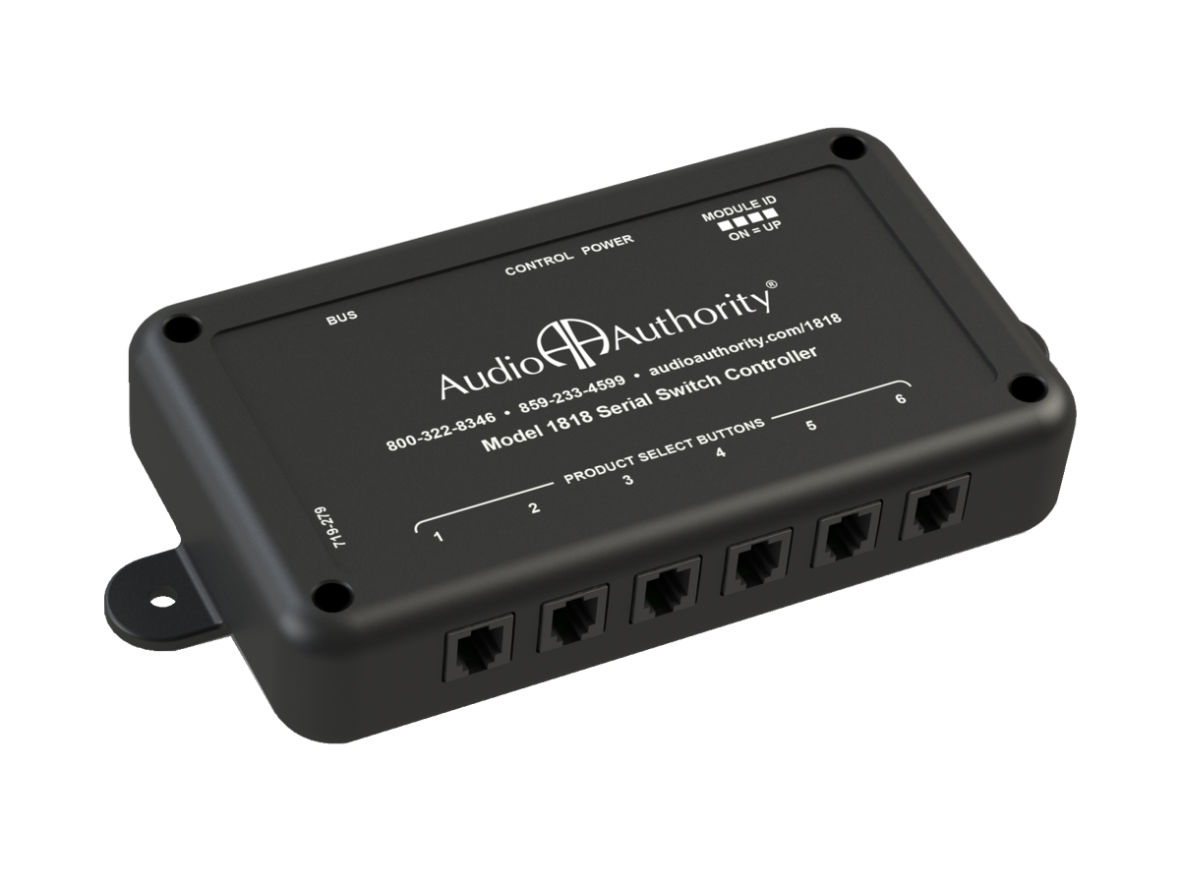

model 1818 (top)

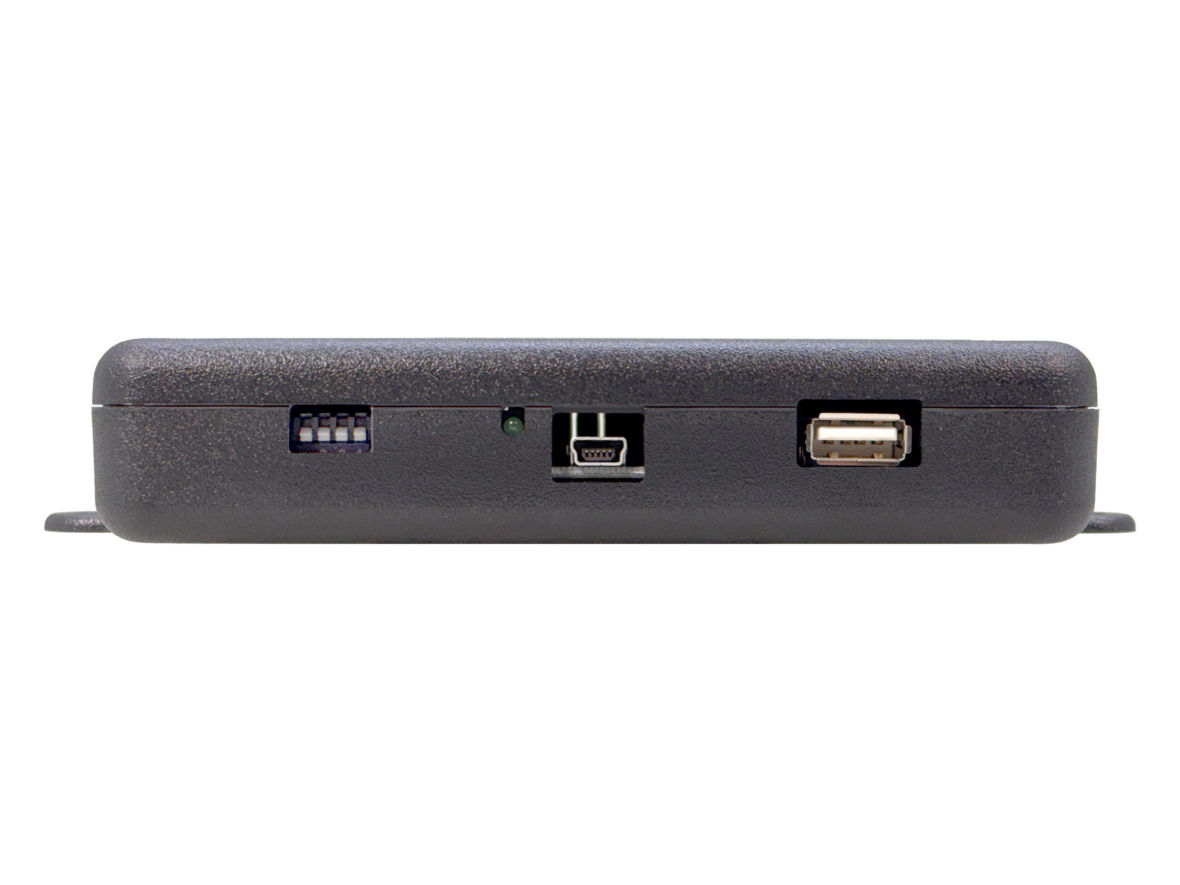

model 1818 (rear)

1818 GPIO Adapter

Model 1818

  • Six RJ9 ports for push-buttons
  • USB connection and expansion bus
  • Link multiple USB devices
  • BrightSign® Compatible
  • Product selection or other commands
  • Expand up to 16 units (96 positions)

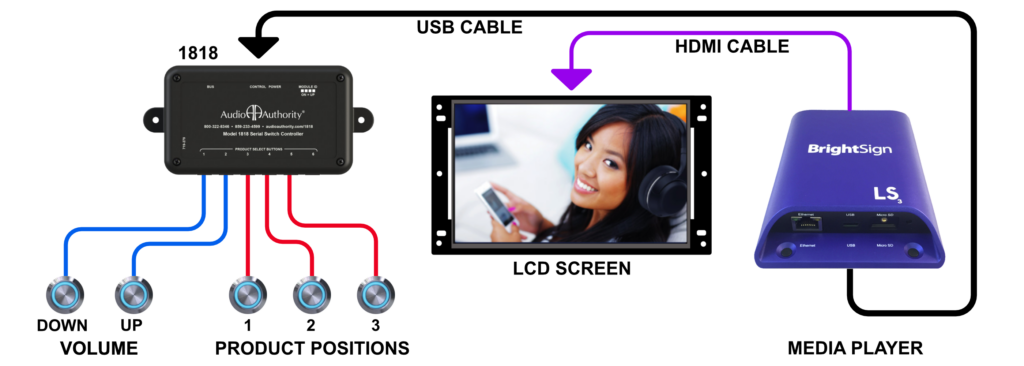

Example System

Compare products using audio-video tracks. Use push-button controls to allow the customers to raise and lower the volume of the video. Push-buttons are lit solid when idle. Select a product position button to view a video about the product selected.

1818 example system

Six-Position USB Switch Controller

The 1818 controller interfaces with a BrightSign media player via USB; control volume up/down, and select product positions via push-buttons. The modular RJ9 plug makes the push-buttons easy to install and reliable for the life of the display. The Model 1818 is ideal for cost efficient product merchandising. See also our 16-position 1807 for even more capacity and advanced demo design.

Literature

Manual
