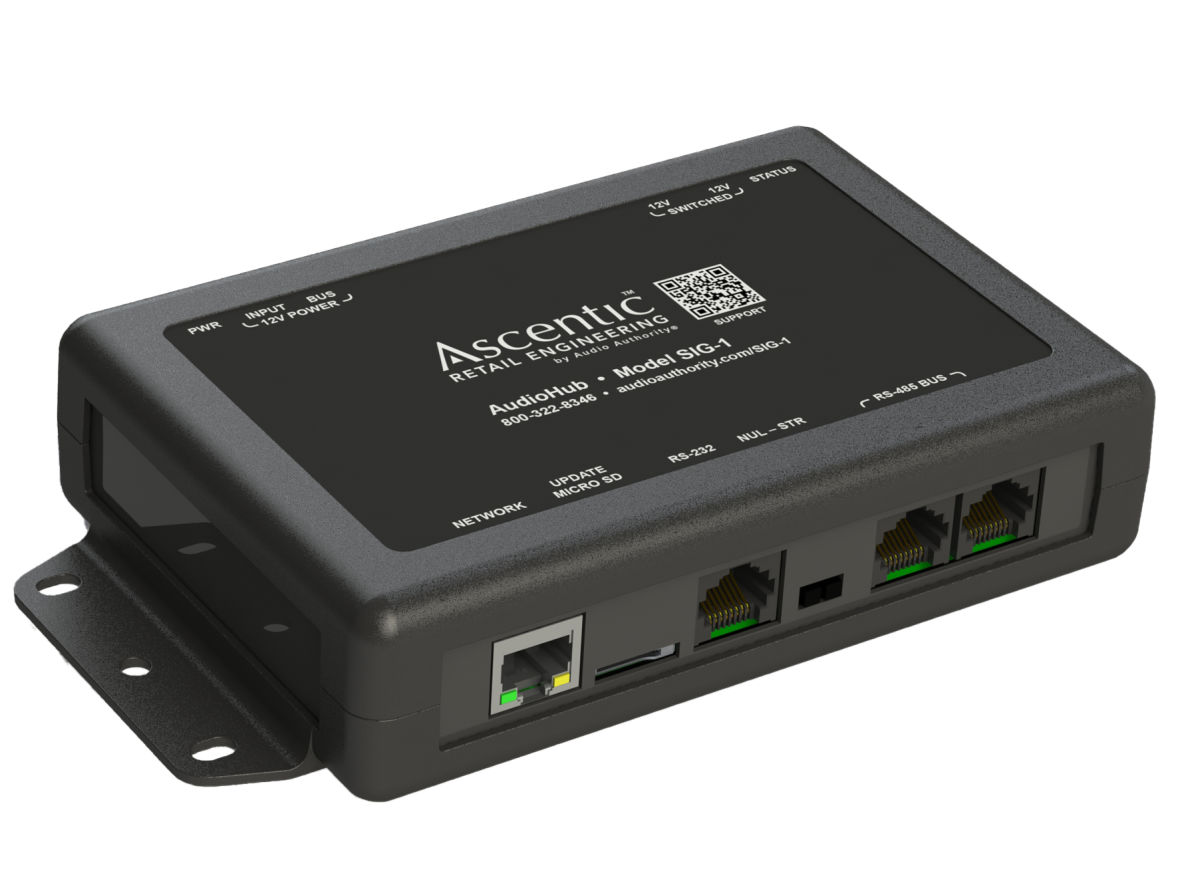

Model SIG-1
Model SIG-1 (top)

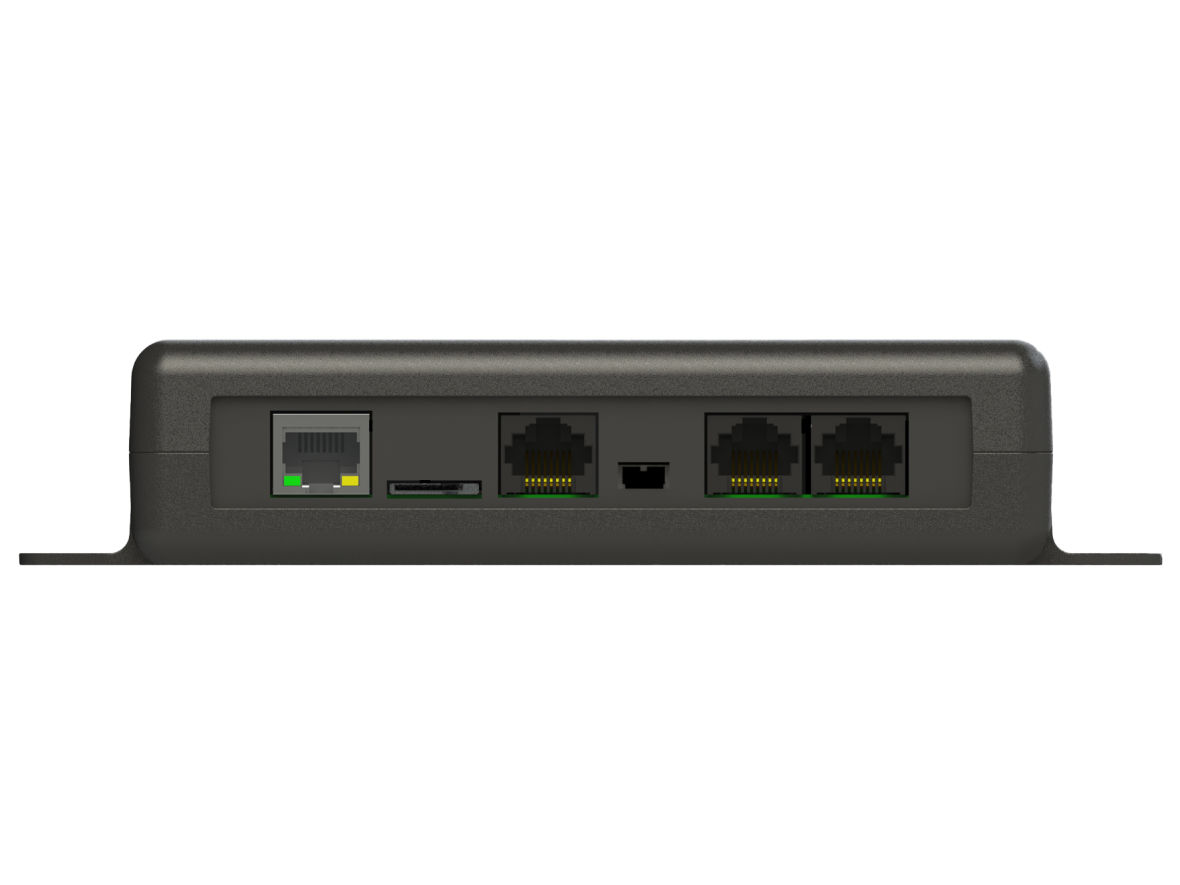

Model SIG-1 (front)

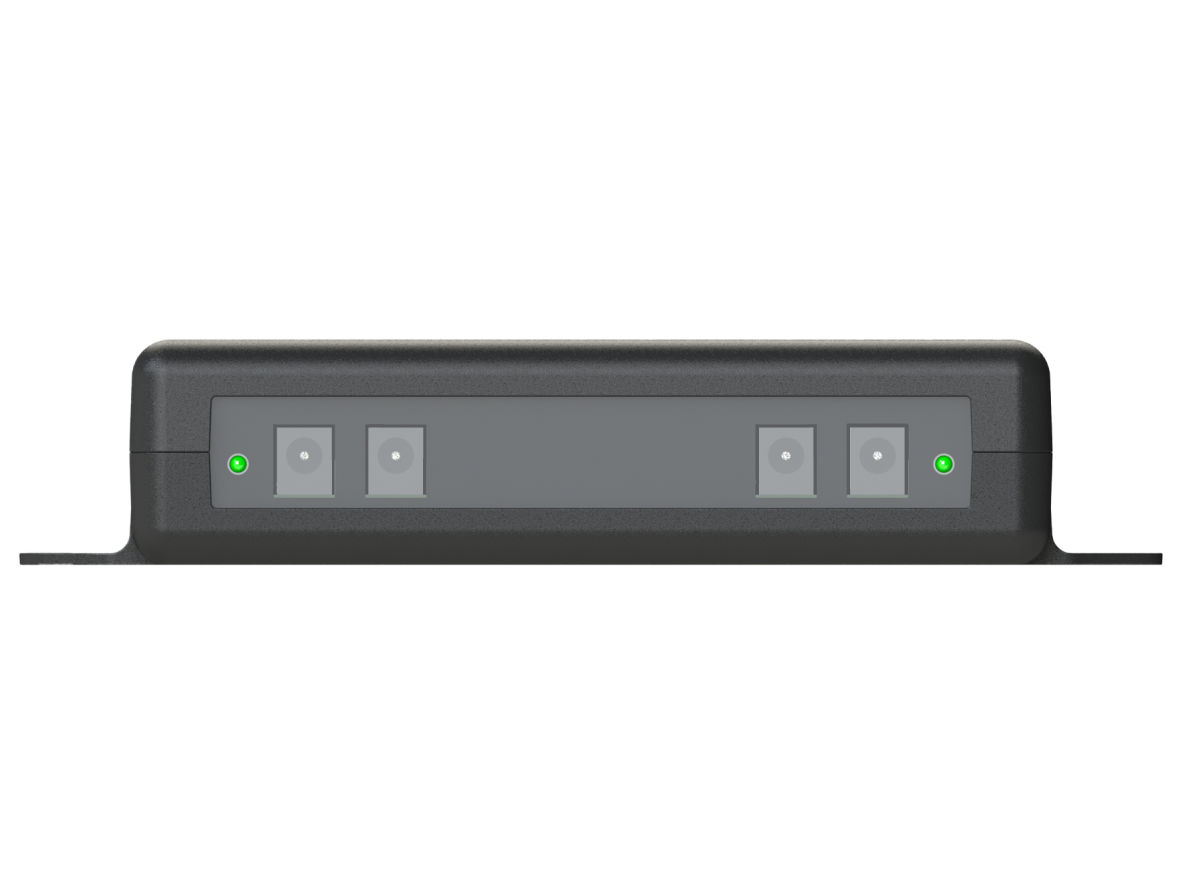

Model SIG-1 (rear)

Model SIG-1 Communication Bridge

Model SIG-1

  • Communication bridge between devices and network
  • Remote access via Telnet
  • Records time-stamped information logs
  • Measures and reports current draw
  • Controls switch power on and off
  • Logs RS-485 or RS-232 commands
  • Configures information into memory
Usage
  • Serves as a communication bridge between serial devices and network portal devices.
  • Enables control of a system from a remote location via Telnet
  • Records time-stamped activity logs of all serial traffic for a session
  • Measures and reports current draw for the connected system
  • Controls switch power on and off to a +12V DC system up to 7A remotely
  • Logs any known RS-485 or RS-232 commands for remote log analysis
  • Configures information into memory via serial commands or a configuration file on a microSD card

Communication Bridge

The SIG-1 Communication Bridge facilitates the communication between serially-connected devices (RS-232 and/or RS-485) and your network. Telnet network communication allows for monitoring, control, and power cycling of a connected system. The SIG-1 mounts directly to a flat surface using the mounted flanges.
