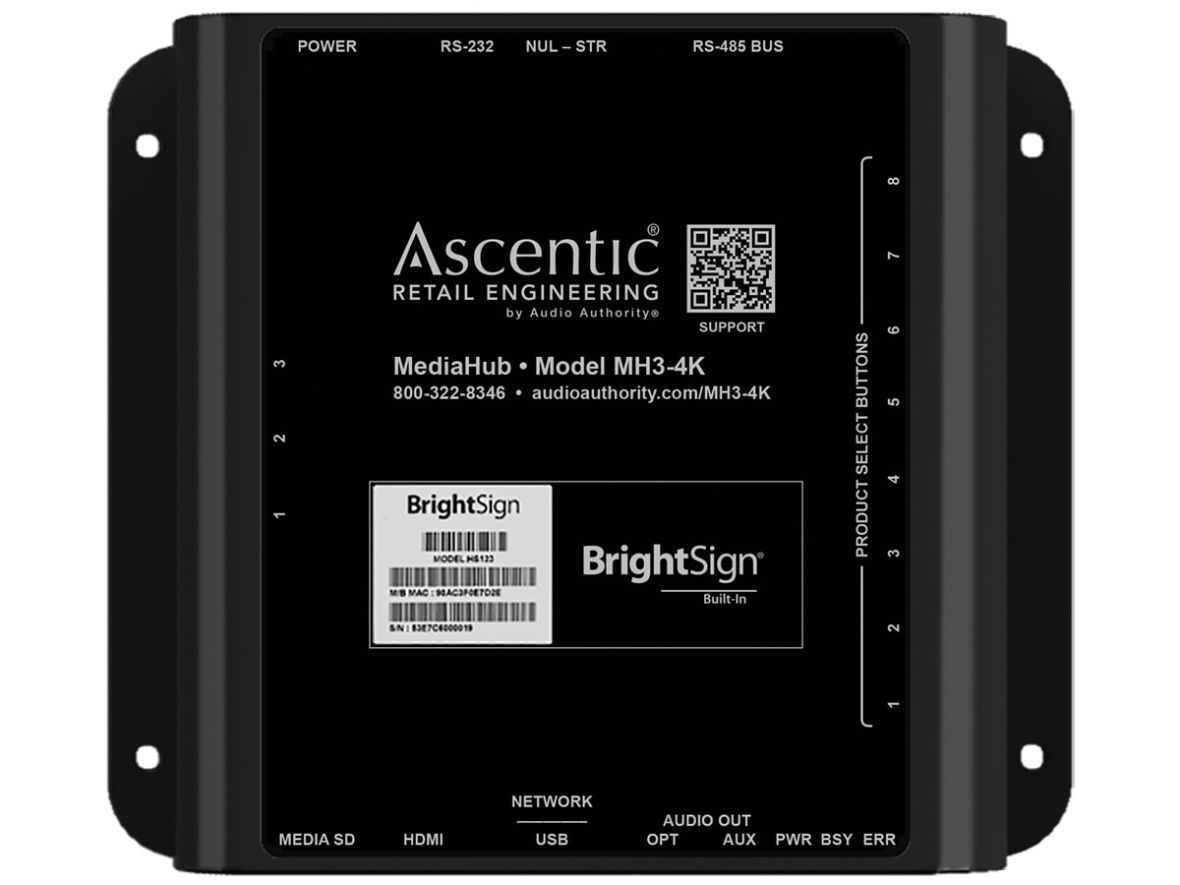

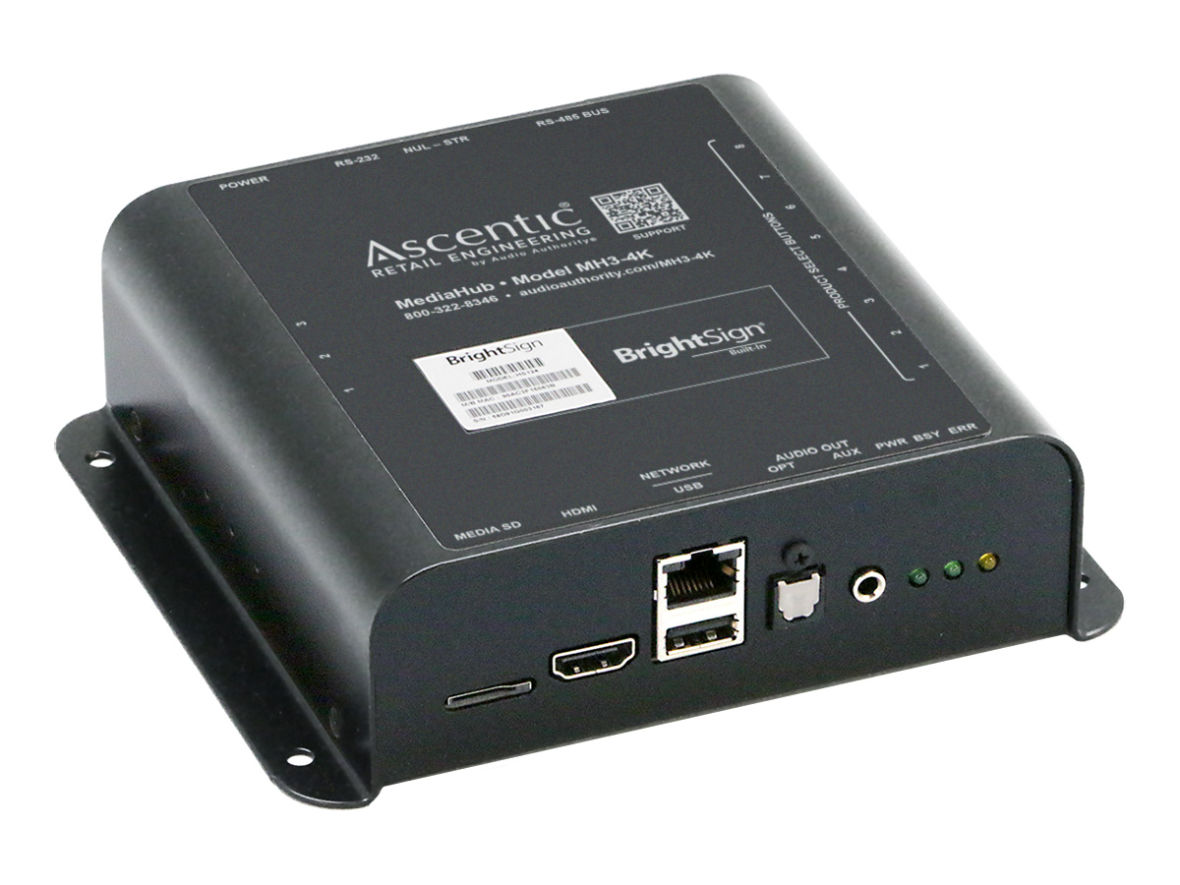

MH3-4K Media Hub
Model MH3-4K
- BrightSign® digital signage module
- 4096×2160@30Hz with discrete digital and analog audio
- CEC control via HDMI port
- Eight ports for push-buttons or sensors
- Connect touch screen, touch panel, or volume knob
- Network port for updates and control
Media
- Audio-video MediaHub with Integral BrightSign® player

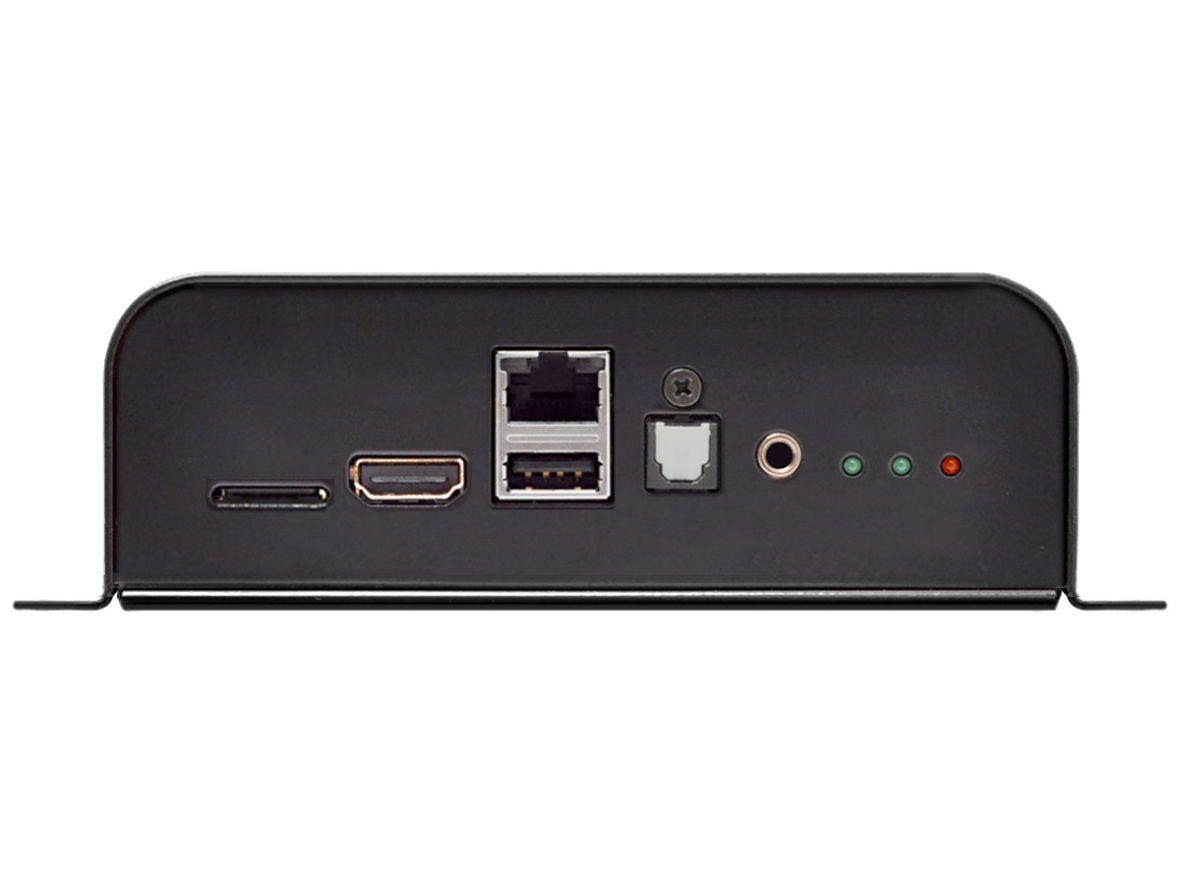

- Video output: 4096×2160@30Hz and digital audio (HDMI)
- CEC control (HDMI port)
- Discrete digital and analog audio outputs (optical and 3.5mm)

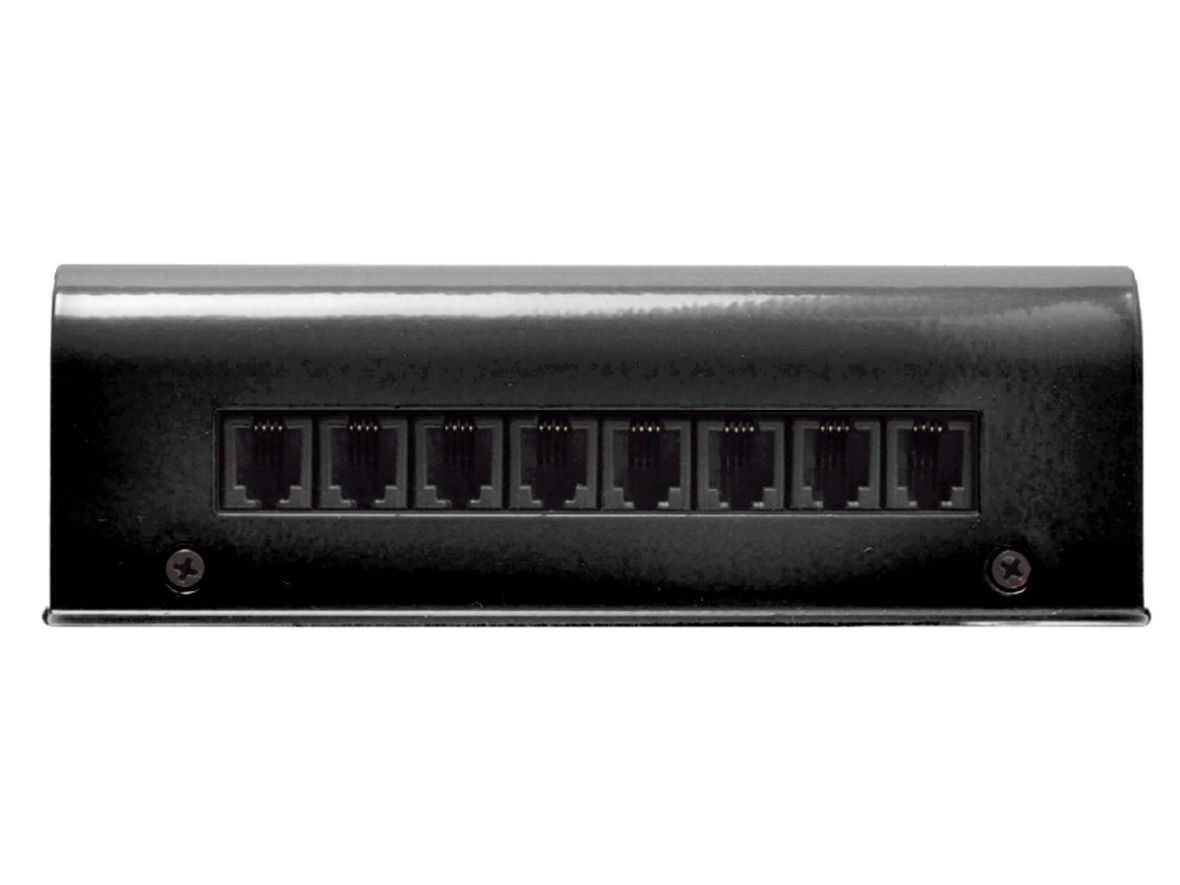

- Programmable push-button ports (RJ9 x8)

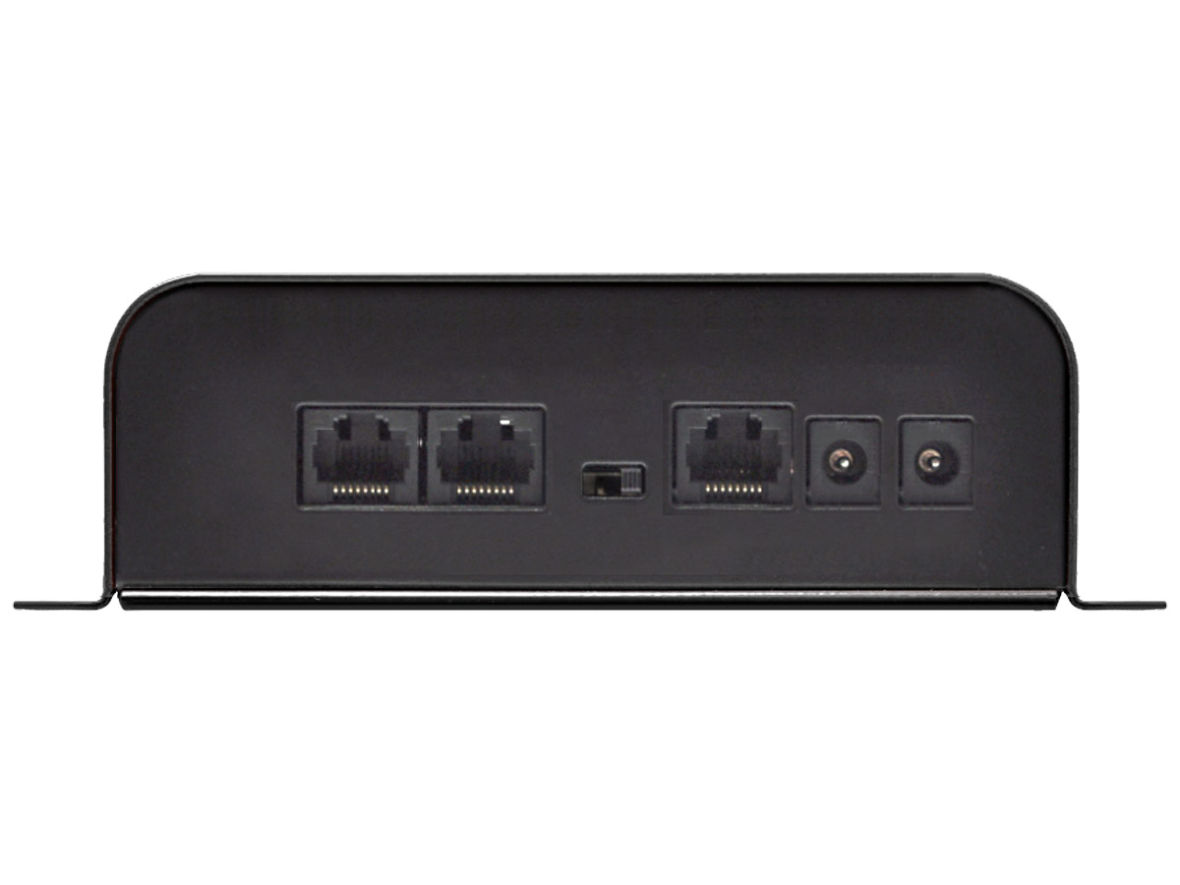

- Control ports for peripherals (RJ45 x3)
- USB port for touch screen or other device
- Ethernet port for remote updates and control
Application Example
Digital and Analog Headphones with Video This display leverages the MH3-4K Media Hub’s multiple audio output options to demonstrate a variety of products. The audio output jacks can play either digital or analog audio, depending on the requirements of the device. The HDMI output interfaces with a 4K TV that informs the customer about each product. Eight AirSelect touchless sensors provide an intuitve and inviting way to select each product.
Interactive HD Demonstrator
The Model MH3-4K combines BrightSign’s media-playing muscle with the interactivity you expect from Audio Authority®. With a BrightSign digital signage module built-in, the MH3-4K produces flawless 4K@60 video and uncompressed audio, with all the custom capabilities made possible by BrightAuthor software.
Extensive inputs and outputs on the MH3-4K provide many ways to interact – eight ports for push-buttons or sensors and three serial ports for external control devices including touchscreens and touch panels. Assign behaviors to any control – transport controls, product selection or other custom commands. Media and BrightAuthor programming may be updated via network.
- Audio Formats: MP3 (mono or stereo) @ 44.4kHz or 48kHz, WAV (mono or stereo) @ 96kHz, 48kHz, or 44.1kHz
- Video Formats: MP4 and MOV (without metadata) with AAC or AC3 audio (pass-thru)
- Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2, MPEG-1
- Extended compatibility with the latest Ascentic peripherals
- Dimensions (HxWxD, inches): 5.4 x 5.2 x 1.8
- Communication: USB-A, RS-485 control ports (x2), RS-232 port (Baud rate is software selected), Ethernet
- SD or SDHC media card
- Power Supply: 12V DC, 5A
