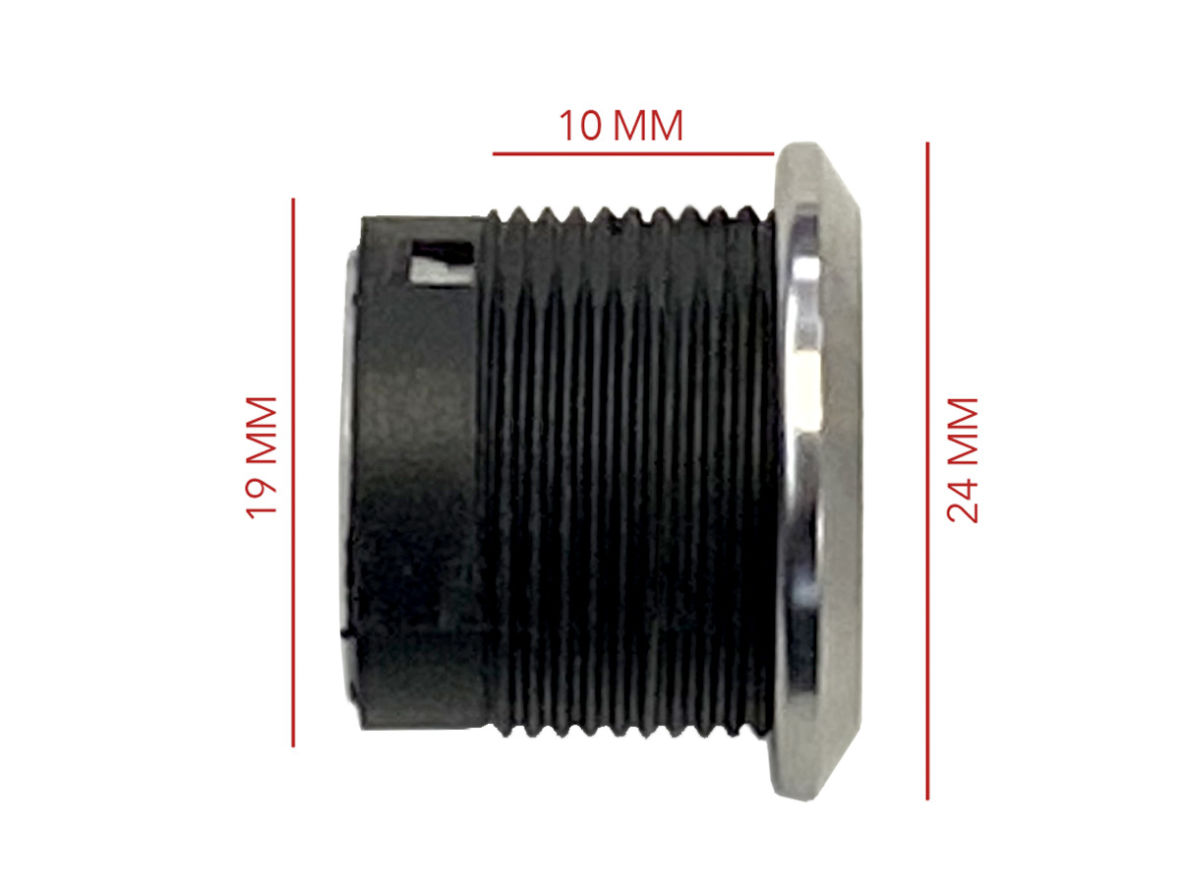

gx-100 dimensions
RJ9 Connector cable

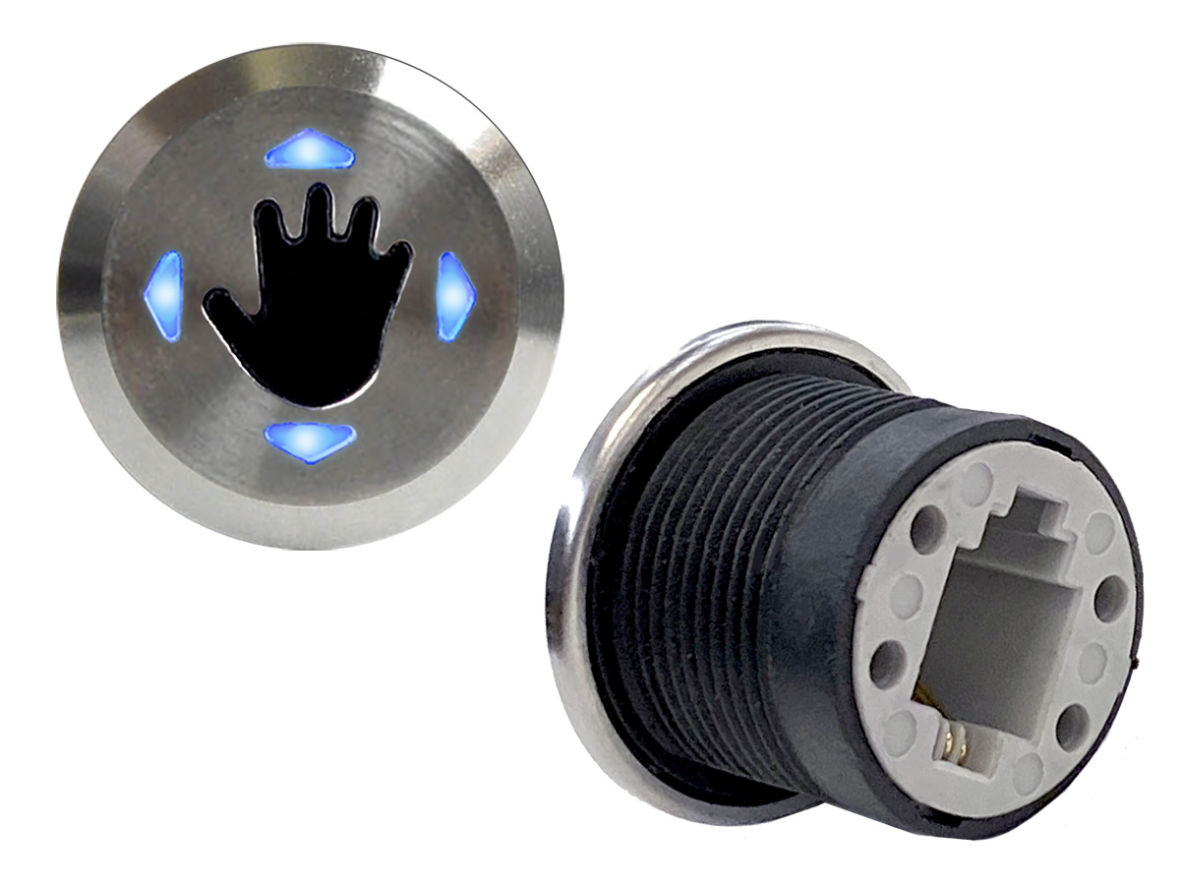

GX-100 AirSelect Proximity Sensor (RJ9 Connector)

Model GX-100

  • Hole size: 0.75 inch (19 mm)
  • Outer diameter: 0.93 inch (24 mm)
  • Maximum panel thickness: 0.25 inch (6.5 mm)
  • Required depth: 1 inch behind front panel surface
  • Illumination: multi-color LEDs
  • RJ9 cable is available in several lengths – sold separately
Usage

This illuminated stainless steel gesture sensor is designed to perform many functions in a retail display. The LED lights invite customers to interact, and confirm directional gestures. Connects with RJ9 cables (available in several lengths). The standard 802-807 harness is 1.5m long, with other lengths available upon request.

Why is the AirSelect Gesture Sensor Special?

The GX-100 offers several advantages:

  • Sensors eliminate the need for users to touch displays
  • The hand shaped sensor window invites users to interact in a natural, safe way
  • The compact GX-100 is easy to install in a 19mm hole
  • Five gestures are available to control an interactive experience: left, right, up, down, and hover
  • The RJ9 plug eliminates cumbersome wires and complicated plugs – simply click the cable into the rear of the switch
