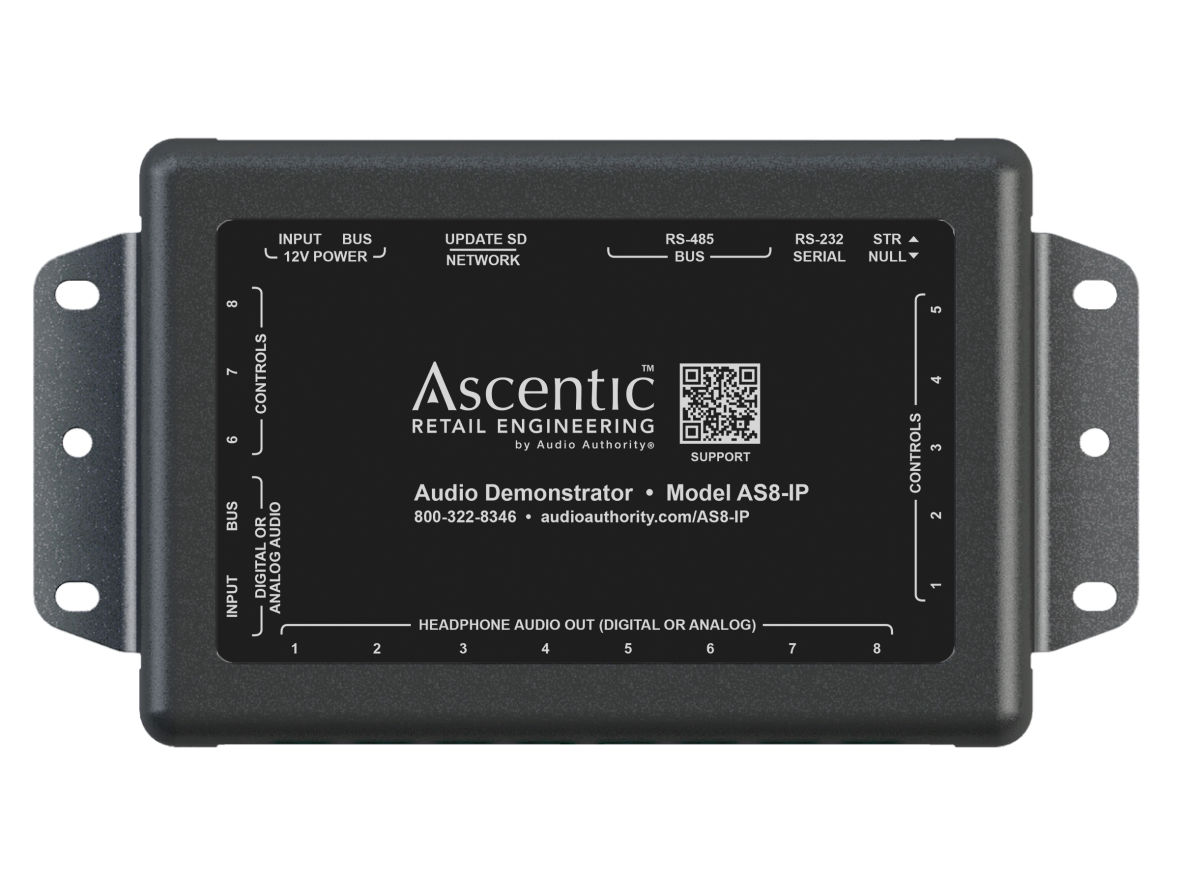

AS8-IP (top)

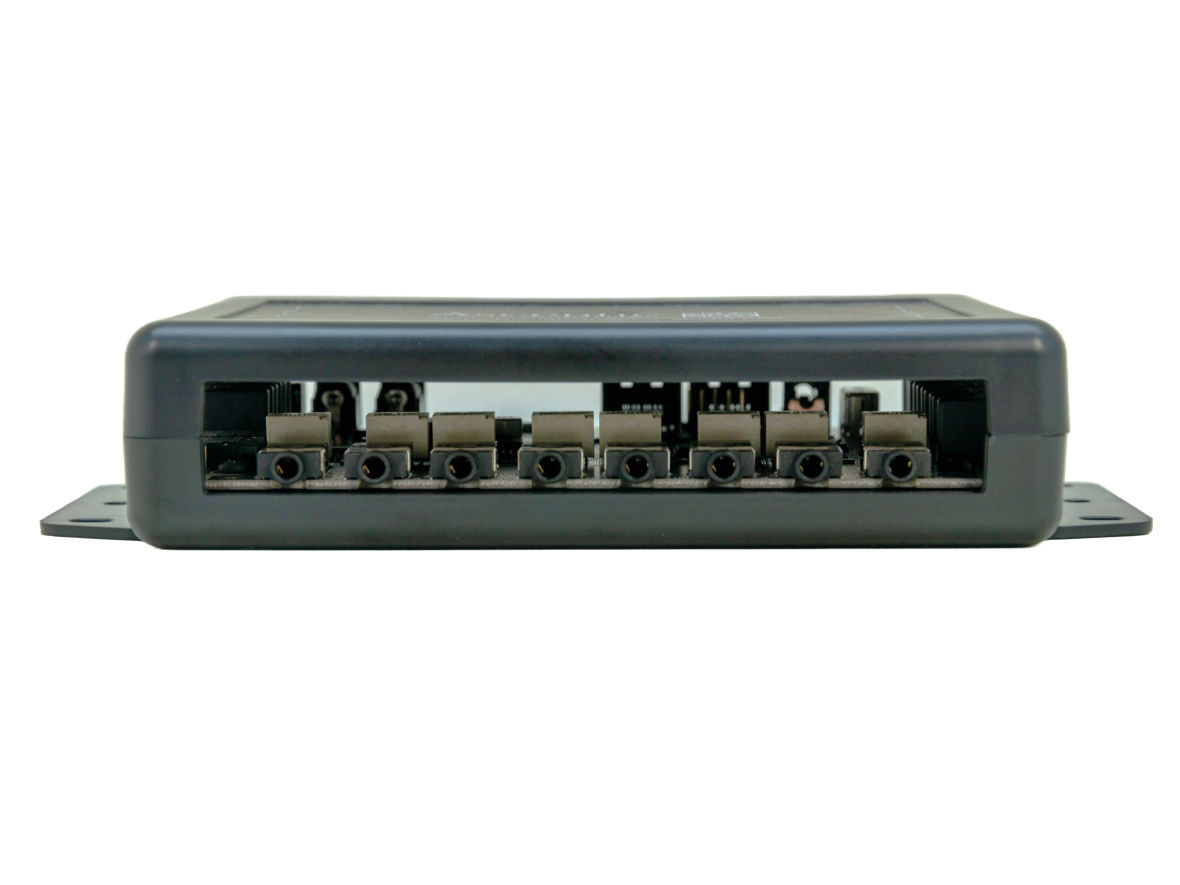

AS8-IP (side 1)

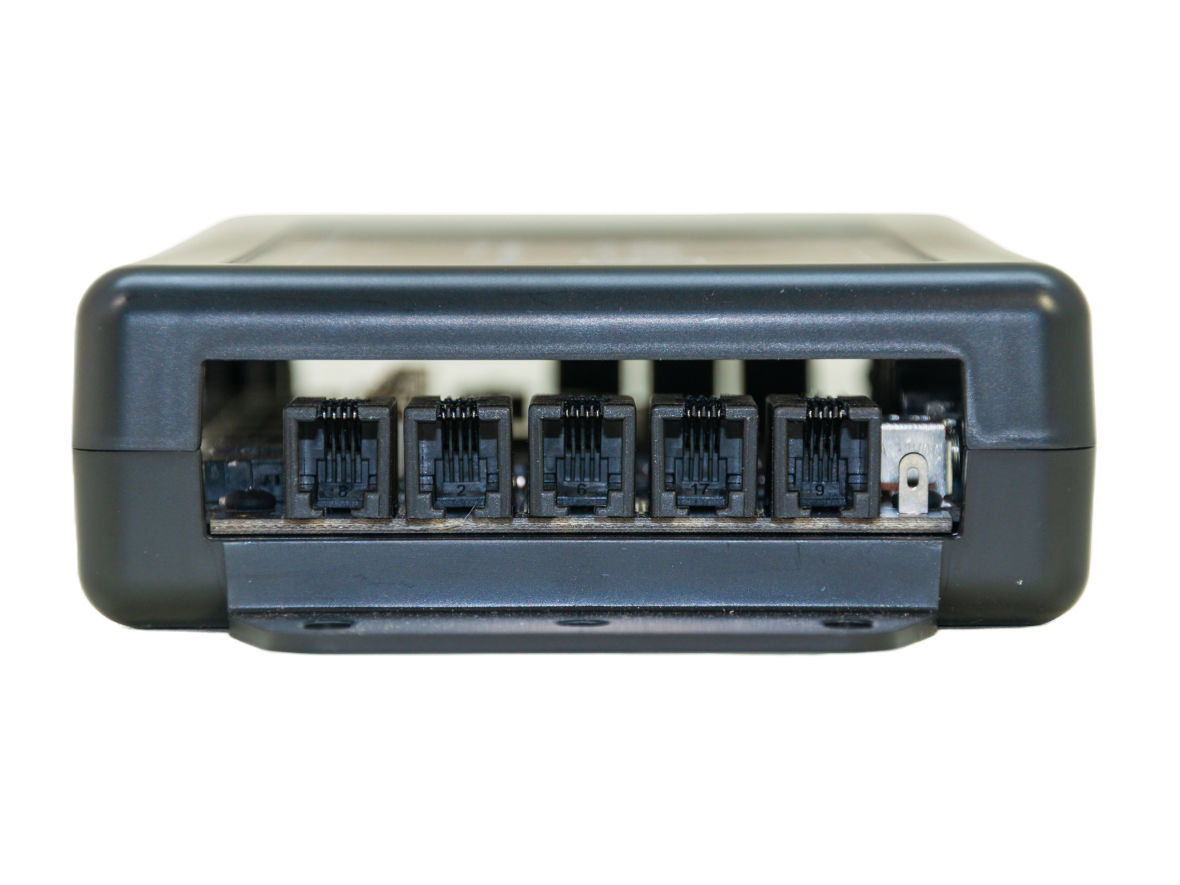

AS8-IP (side 2)

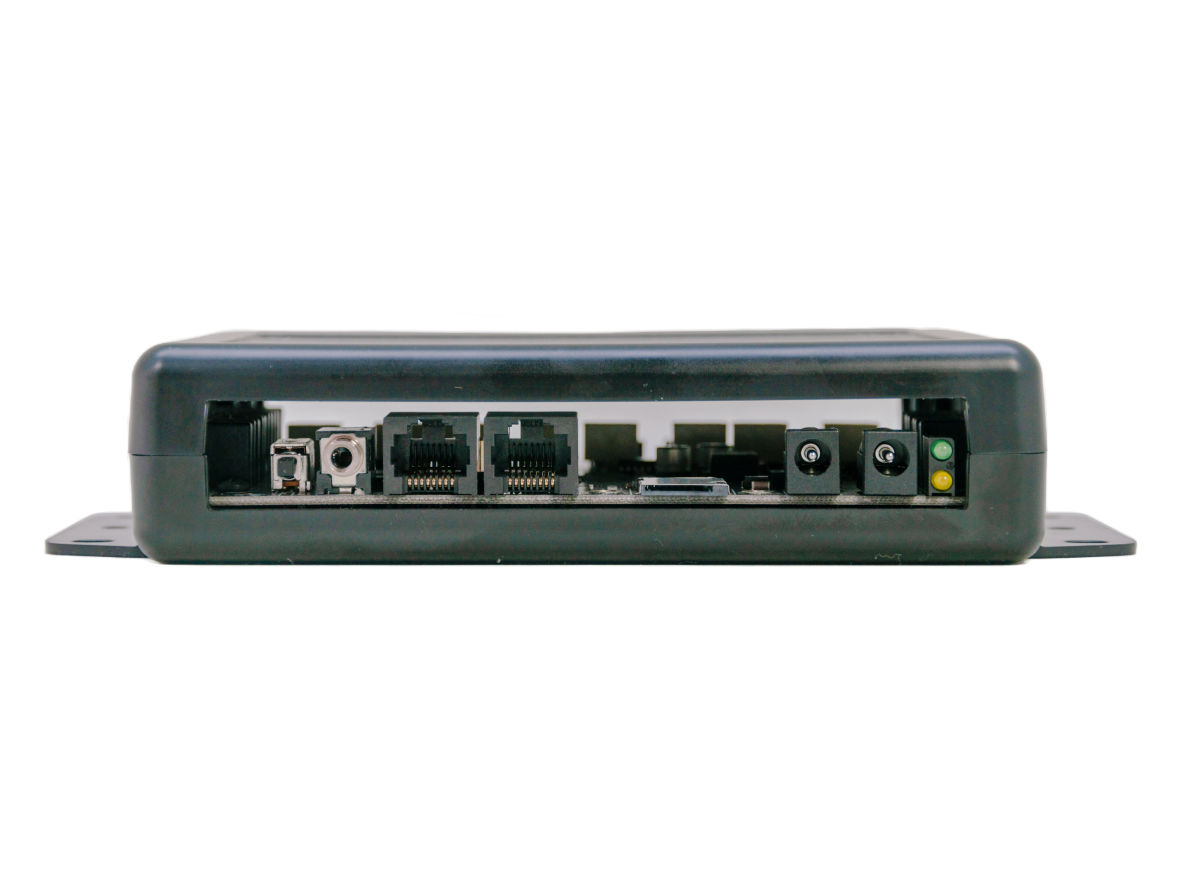

AS8-IP (side 3)

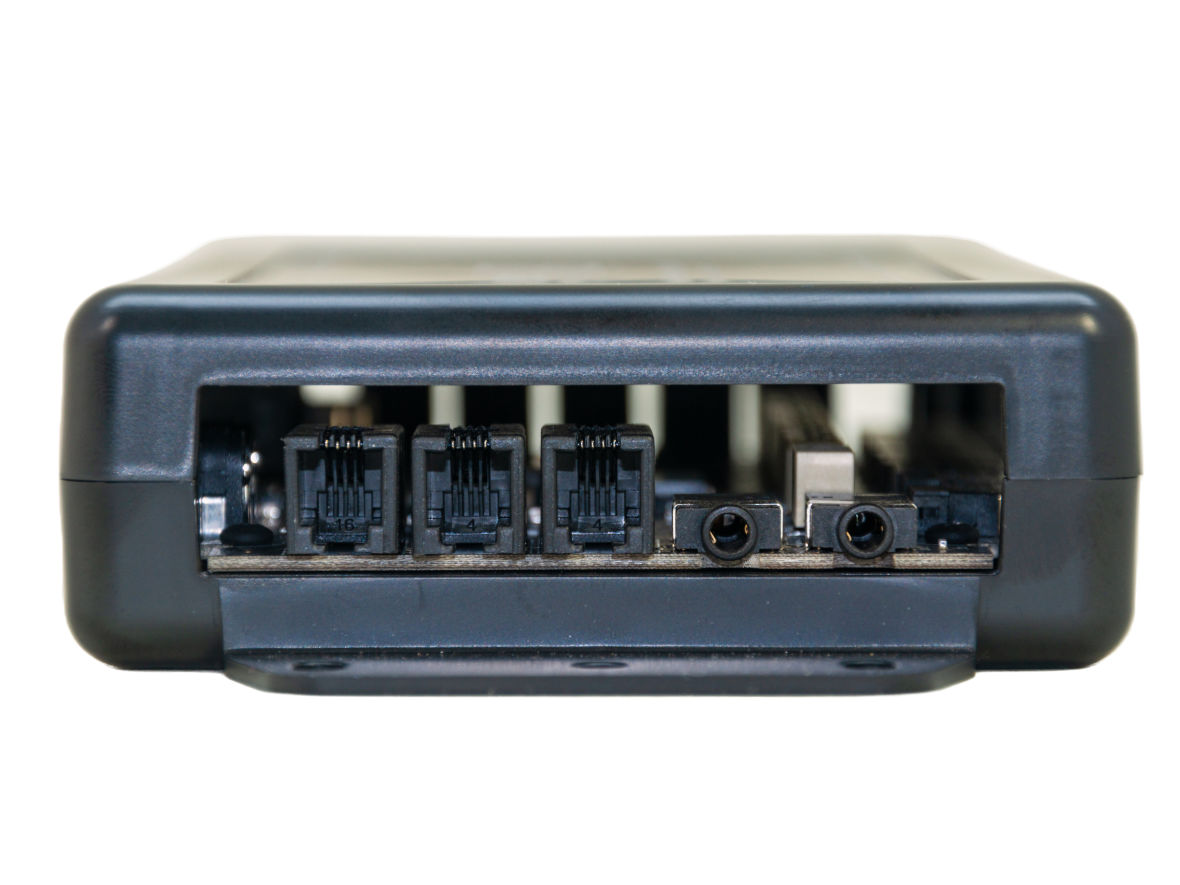

AS8-IP (side 4)

Model AS8-IP Audio Demonstrator

Model AS8-IP

  • Switches audio signals
  • Digital and/or analog audio
  • Multiple control options
  • Connect up to eight devices
  • Ethernet connectivity
Usage
  • Switches audio signals to sound bars, headphones or powered speakers
  • Connect up to eight devices
  • Analog and digital audio inputs may be connected simultaneously
  • Controllable via buttons, sensors, touch panels, touchscreen, and multi-function rotary controls
  • Serial and Ethernet connections for data, control and system health monitoring

Audio Demonstrator

The Ascentic AS8 Audio Demonstrator switches audio signals for up to eight outputs, either digital audio, analog, or a combination of audio formats. The AS8-IP may be controlled via buttons, sensors, touch panels, touchscreen, and muti-function rotary controls, and can be updated, checked, and controlled remotely via serial or Ethernet connections.
