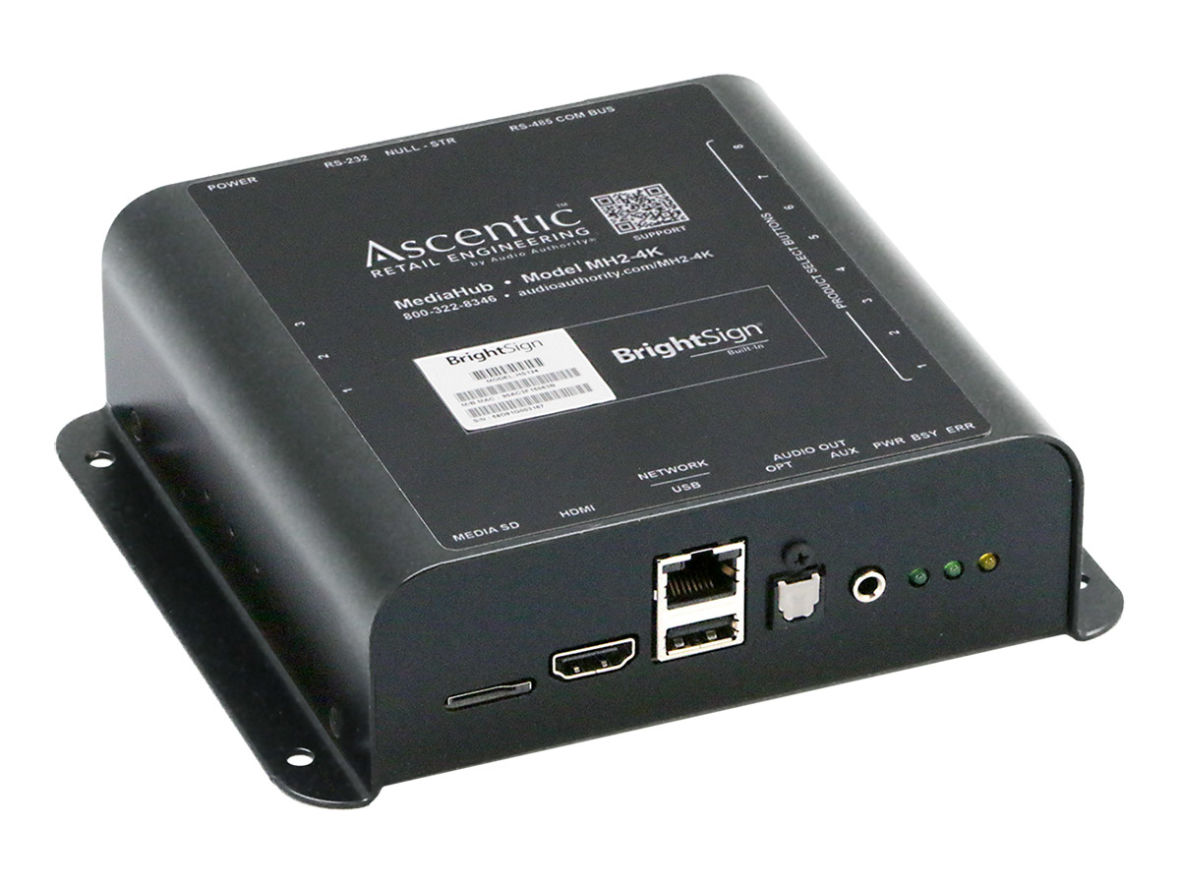

MH2-4k

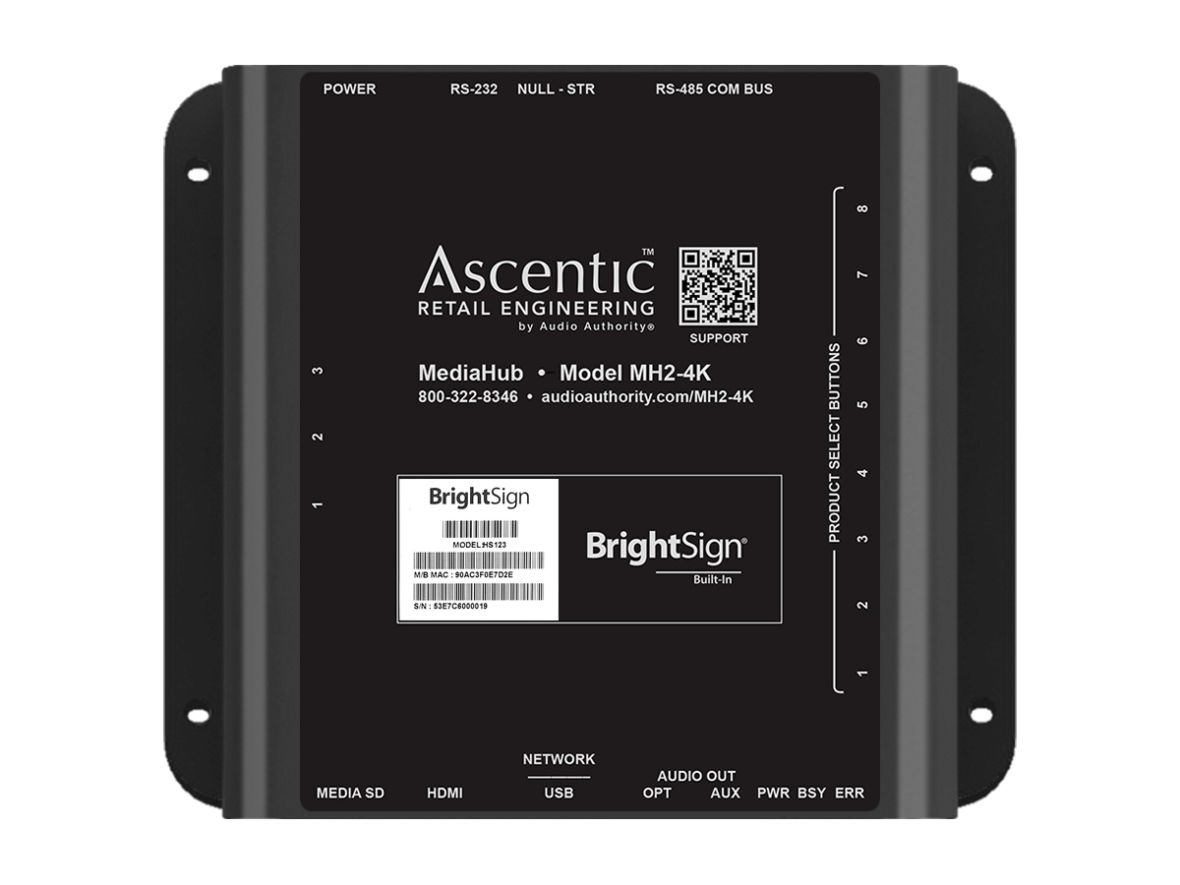

MH2-4K (top)

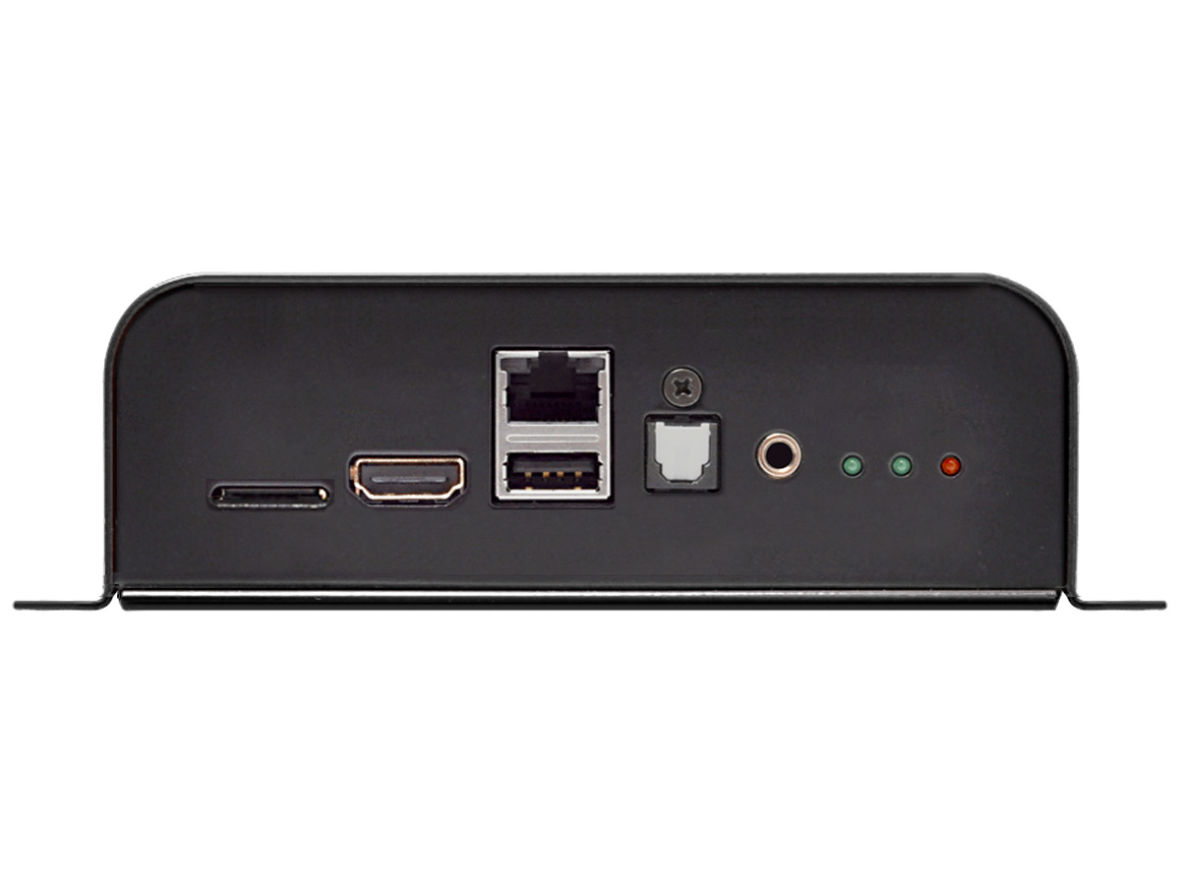

MH2-4K (front)

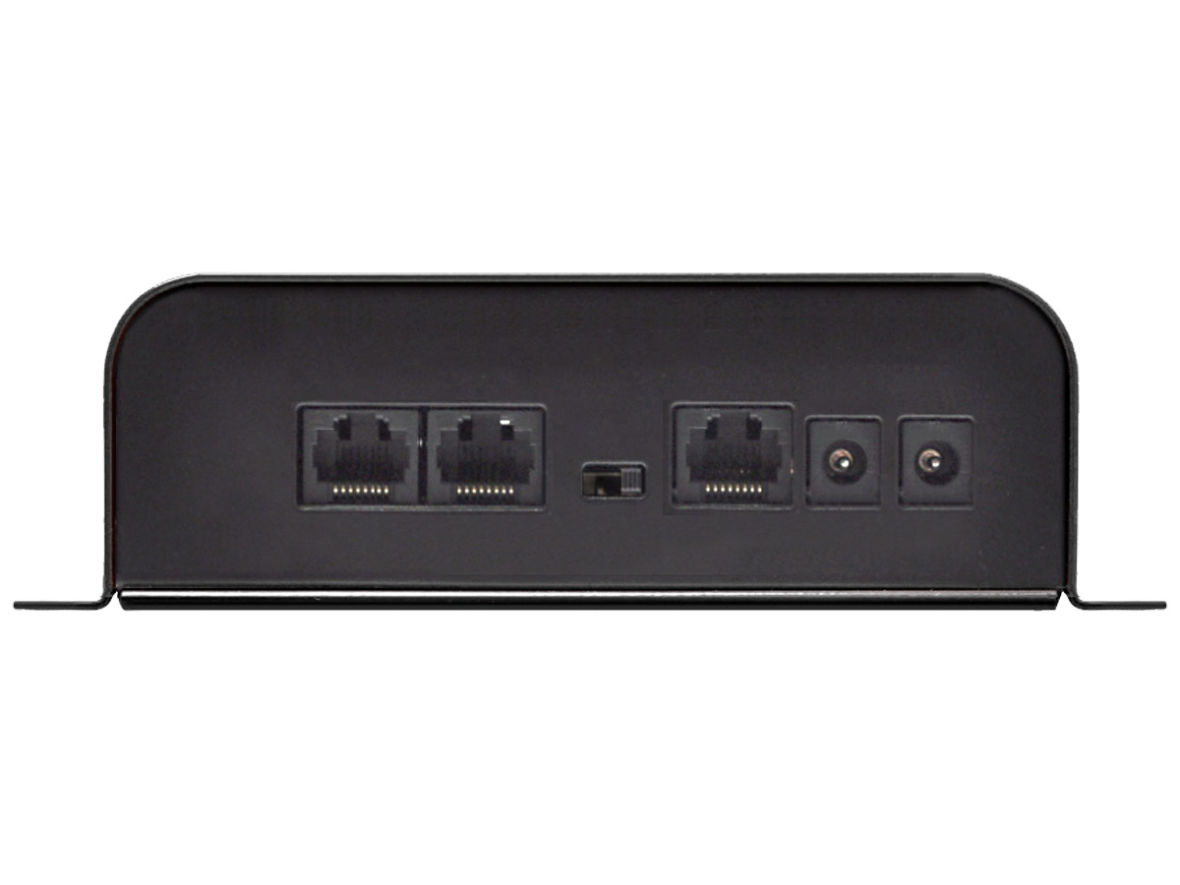

MH2-4K (back)

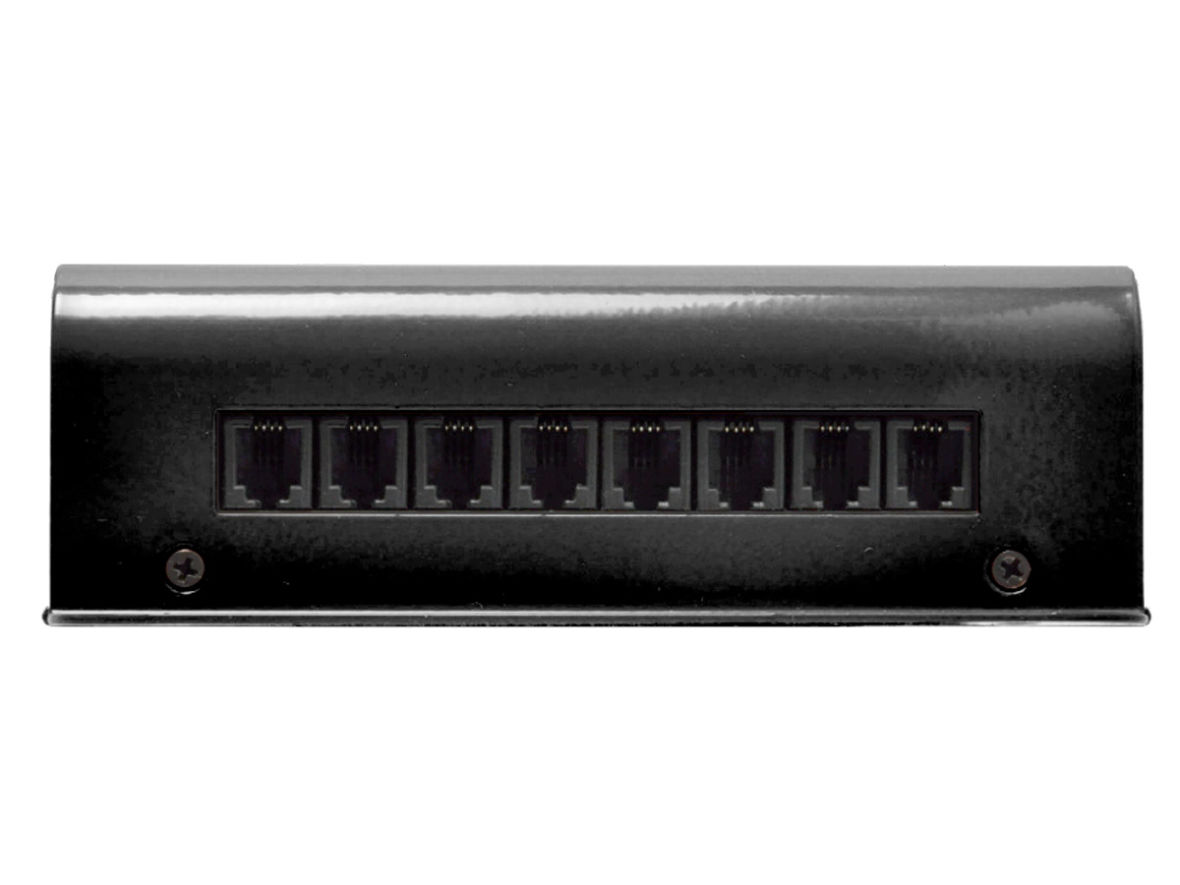

MH2-4K (side)

MH2-4K Media Hub

Model MH2-4K

  • BrightSign® digital signage module
  • 4096×2160@60Hz with discrete digital and analog audio
  • CEC control via HDMI port
  • Eight push-button ports
  • Connect touch screen, touch panel, or volume knob
  • Network port for updates and control
Media
  • Audio-video MediaHub with Integral BrightSign® player
  • Video output: 4096×2160@60Hz and digital audio (HDMI)
  • CEC control (HDMI port)
  • Discrete digital and analog audio outputs (optical and 3.5mm)
  • Programmable push-button ports (RJ9 x8)
  • Control ports for peripherals (RJ45 x3)
  • USB port for touch screen or other device
  • Ethernet port for remote updates and control
Application Example

Sound Bar Demo

The MH2-4K does more than play media in this full-featured sound bar demo – it coordinates a complex audio demo with lighting effects. Customers can audition sound bars, select media, add rear speakers, compare TV sound to sound bars, and adjust volume. Sound bars are selected using push-buttons on the right, triggering the first media file to play, and the shelf to light up. Lights under the shelf also highlight the selected subwoofer. The user selects media using a small touch screen. The rear speakers are powered via a smart amplifier that tracks volume control with the selected sound bar. The MH2-4K starts its silent attract mode after a period of inactivity, ready to attract the next customer.

Interactive HD Demonstrator

The Model MH2-4K combines BrightSign’s media-playing muscle with the interactivity you expect from Audio Authority®. With a BrightSign digital signage module built-in, the MH2-4K produces flawless 4K@60 video and uncompressed audio, with all the custom capabilities made possible by BrightAuthor software.

Extensive inputs and outputs on the MH2-4K provide many ways to interact – eight push-button ports and three serial ports for external control devices including touchscreens and touch panels. Use push-buttons and touch panels as transport controls and/or product selection and other custom commands. Media and BrightAuthor programming may be updated via Ethernet.

  • Audio Formats: MP3 (mono or stereo) @ 44.4kHz or 48kHz, WAV (mono or stereo) @ 96kHz, 48kHz, or 44.1kHz
  • Video Formats: MP4 and MOV (without metadata) with AAC or AC3 audio (pass-thru)
  • Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2, MPEG-1
  • Dimensions (HxWxD, inches):  5.4 x 5.2 x 1.8
  • Communication: USB-A, RS-485 control ports (x2), RS-232 port (Baud rate is software selected), Ethernet
  • SD or SDHC media card
  • Power Supply: 12V DC, 5A
